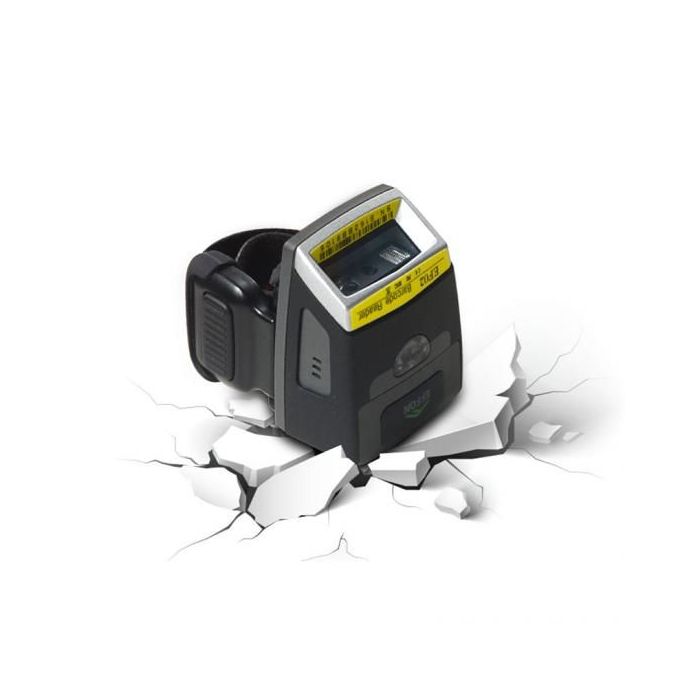

SMP EF02 2D Ring Bluetooth IP65 Barcode Scanner with Zebra SE2707 2D scanner
£166.80
£139.00
In stock
SKU
EF02-ZEB
SMP EF02 2D Ring Bluetooth IP65 Barcode Scanner with Newland N1 2D scanner
SMP EF02 Bluetooth Ring Scanner is the first industrial IP65 ring scanner, providing extreme comfort.
Product Type: Ring QR Scanner
Scan Engine: SE2707, SE4710, supports 2d / 1d barcodes
Battery Capacity: Removable & Rechargeable 550mAh
Industrial Features: IP65, shockproof
Compatibility: Android / IOS / Windows
SMP EF02 Bluetooth 2D Ring Barcode Scanner
SMP EF02 Bluetooth Ring Scanner is the first industrial IP65 ring scanner, providing extreme comfort.
Product Type: Ring QR Scanner
Scan Engine: SE2707, SE4710, supports 2d / 1d barcodes
Battery Capacity: Removable & Rechargeable 550mAh
Industrial Features: IP65, shockproof
Compatibility: Android / IOS / Windows
EF02 2D wearable ring barcode scanner with memory connect with the watchband armband, which is designed for logistics and warehouse management. You can wear it on your finger to free up your hand to handle materials, goods, and packages while scanning, it is very comfortable to wear it in a whole working day and can even improve 25%-30% overall productivity. EF02 ring QR scanner is a new generation scanner for mobile scanning, picking and sorting application.
With BT 4.0 (BLE) function, the EF02 ring scanner supports Bluetooth HID, SPP (Master/Slave) and BLE connecting, including NFC connection.
Features:
Ruggedness
The rugged design of the EF02 makes any supported mobile device and PC ready to meet the challenges of the most demanding environments. The industrial-grade housing can handle up to 200 drops from 1.5 meters onto concrete. Withstanding at least 15 times Tesla Model3 Rolls
Excellent Button
Branding scanning button and rotation button enhances ring scanner's durability.
Flexible Battery Design
There is a switch off / on for the battery cover, which makes it very convenient to remove the battery.
Battery Capacity
550mAh replaceable battery, supporting more than 11 hours of work after full charge; Charging time: 2 hours.
Customized one-to-many connectivity
One Bluetooth charging cradle at least allows one PC to connect with at least 5pcs ring scanners
Splicing charging cradle
Charging up to 5pcs ring scanners in parallel at the same time
Optional Charging Cradle
1. Bluetooth adapter & Charging Station
2. Charging Station
NFC Connection
Just tap for instant pairing: with NFC, workers can simply tap the EF02ON NFC-enabled android devices. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device.
Customizable Service
Choose from one-finger/two-finger ring or cut-resistant glove form factors, as well as resistant glove form factors, as well as software and hardware redesign options; Standard or Advanced versions are available to fit workflow needs.
Technical Parameters
|
Product name |
IP65 Bluetooth Ring Scanner EF02 |
|||||||||||||
|
Dimensions |
Length:55.0mm, Width: 39.2mm, Height:51.2mm |
|||||||||||||
|
Weight |
65grams |
|||||||||||||
|
Electrical |
Power: DC5V Typical: 300mA DC5V |
|||||||||||||
|
CPU |
32bit ARM CPU |
|||||||||||||
|
Data storage |
100KB for offline mode: 6000 15 bytes barcodes (Other flash is optional). |
|||||||||||||
|
Working mode |
Bluetooth mode, offline mode and RS232 mode (optional) |
|||||||||||||
|
Scan mode |
Manual mode, Continuous, Host, Sense mode |
|||||||||||||
|
Ambient illumination |
0～107,639 lux |
|||||||||||||
|
Scanner performance |
Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED 660nm red LED Scanner Angle: ±60°, ±60°, ±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28° Contrast: ≥20% |
|||||||||||||
|
Battery power |
Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
Charge time: about 2 hours |
|||||||||||||
|
Barcode Type |
1D |
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Reduced Quiet Zone, Discrete 2 of5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128, Emulation Mode for UCC/EAN Composite Codes |
||||||||||||
|
2D |
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
|||||||||||||
|
Decoding depth & Max. Resolution (1 mil = 0.0254 mm) |
Code 39 |
51mm -162mm (5mil); |
||||||||||||
|
Code 128 |
63mm -127mm (5mil); |
|||||||||||||
|
PDF417 |
63mm -160mm (6.6mil); |
|||||||||||||
|
PDF417 |
45mm - 228mm (10mil); |
|||||||||||||
|
100%UPC |
50mm -317mm (13mil); |
|||||||||||||
|
Code 39 |
50mm - 495mm (20mil); |
|||||||||||||
|
Data Matrix |
38mm - 343mm (20mil); |
|||||||||||||
|
QR Code |
38mm -279mm (20mil) |
|||||||||||||
|
Communication |
Class 3 Bluetooth HID, SPP, BLE(optional) with 30M distance, RS232 cable(optional) |
|||||||||||||
|
OS |
IOS, Android, Windows, Mac |
|||||||||||||
|
Certificate |
CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test (200 times). Utility Model Patent No.: ZL201420211350.8 |
|||||||||||||
|
Laser safety |
IEC60825-1-2007, Class 1 |
|||||||||||||
|
Temperature |
Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) |
|||||||||||||
|
Humidity |
5% to 90% (non-condensing) |
|||||||||||||
|
Accessories |
1× EF02P 1× 3.7V 15320 Li-ion battery 1× Velcro 1× Silicone Case 1× Charger cable (optional) |
|||||||||||||
|
Barcode scanner charger & Bluetooth adapter |
Product name |
Barcode scanner charger & Bluetooth adapter(optional) |
||||||||||||
|
Model name |
BFP1 |
|||||||||||||
|
Dimensions |
72.0mm L × 56.0mm W × 40.3mm H |
|||||||||||||
|
Weight |
50grams |
|||||||||||||
|
Power |
DC:5V/500mA |
|||||||||||||
|
Charge current |
250mA |
|||||||||||||
|
Interface |
1×Type-C(For charge or data transmission):5V DC |
|||||||||||||
|
2×DC jack(optional): 5V DC |
||||||||||||||
|
Characteristic |
1. It can charge both batteries and machines at the same time. 2. The charger can be multiple connected(optional). (In order to ensure charging efficiency, it is recommended that no more than 5 chargers be connected.) |
|||||||||||||
|
Adapter Working mode |
HID keyboard, Virtual Serial Port, RS-232(optional) |
|||||||||||||
| Products Model | SMP EF02 2D Ring Bluetooth IP65 Barcode Scanner with Zebra SE2707 2D scanner |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Wearable |
| Manufacturer | SMP |
