SIR3523 UHF RFID reader WiFi wearable glove RFID Reader
SIR3523 UHF RFID reader WiFi wearable glove RFID Reader

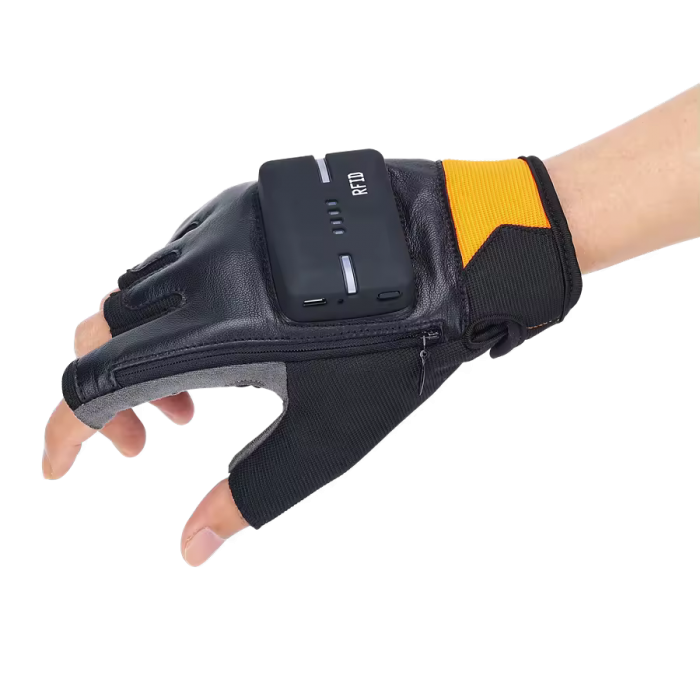

RFID smart glove SLR3522/3523, working frequency is 902~928MHz, ISO18000-6C & EPC C1G2 protocol, communicate through WIFI or bluetooth two options; The UHF RFID smart glove has a delicate and compact design, comfortable to wear, and cost-effective. Wear glove to read RFID tags automatically, help workers realize hands-free, it can be widely used in logistics and asset management applications.
● Based on the New Generation Impinj E310 reader chip.
● Support EPC Global Gen2 (ISO 18000-6C).
● Low power consumption, built-in 1500mAh rechargeable battery, continuous working time of more than 8 hours, meeting the needs of a whole day of work.
● RF power setting adjustable, reading distance is 5-20cm, suitable for short range reading applications.
● When tag is in reading range, the UHF RFID glove will read it automatically, no need extra operation, help worker realize hands-free.
● Communicate through WIFI or Bluetooth two options.
● It is ergonomically designed, comfortable, good for work. Three sizes of S, M, and L options.
Parameter
-
Hardware and OS
- Processor ARM Cortex-M4
- API Support C, C#/.NET, Java
-
Physical Characteristics
- Dimensions 165mm L x 120mm W x 60mm H
- Weight 80g
-
RFID Characteristics
- Air Protocols EPC Class 1 Gen 2 (ISO 18000-6C)
- Chipset Impinj E310
- Frequency USA: 902-928MHz FCC (NA, SA)
EU: 865-868MHz (ETSI)
CN: 920-925MHz (CMIIT) - RF Output Power 5dBm-20dBm (±1dBm) adjustable
-
Connectivity
- Communications SIR3522:
Bluetooth 4.0(BLE),Connect:IOS、Android 4.3+
SIR3523:
Wireless standard:802.11 b/g/n
Security mechanism: WEP/WPA-PSK/WPA2-PSK
Encryption type: TKIP, AES
Wireless network type: AP, AP+STA - Wireless Communication Distance 10m
- Indicator light Power indicator, Tag reading indicator
Charging indicator, Low battery indicator
- Communications SIR3522:
-
Antenna
- Antenna Ports Built-in flexible antenna
-
Performance
- Reading Distance 5-20cm
- Anti-collision ≥200 tags/s
-
Power
- Battery 1500mAh
- Standby Time 9H
- Working Time 7H (reading time 50ms, reading interval200ms)
- Charge Time 3H
-
Environmental
- Operating Temp 5°C to +45°C
- Storage Temp. -20°C - +60°C
- Humidity 5-95% non-condensing (+25°C)
Products Model | SIR3523 UHF RFID reader Bluetooth wearable glove RFID Reader |
---|---|
Barcode scanner | 1D scanner |
RFID reader | UHF RFID |
Manufacturer | Silion |
