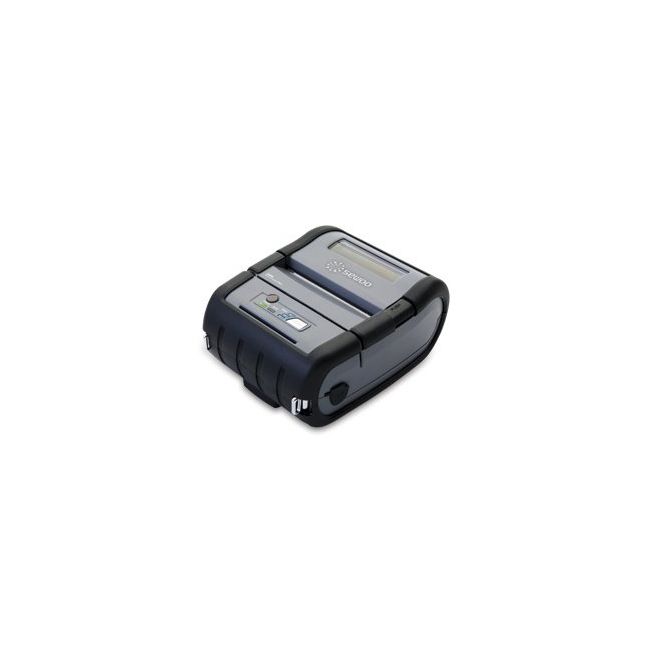

Sewoo LK-P30 3" Printer + USB + RS232 + BT
£306.00
£255.00
In stock
SKU
LK-P30BT
Sewoo LK-P30 3" rugged receipt/label printer with USB, serial, Bluetooth
The Sewoo LK-P30 3″ portable label printer is fast, with a print speed of 100mm per second, and light, weighing just 615 g including the battery. Perfect for labelling in stores, hospitals, warehouses and field applications such as PAT testing, the LK-P30 stands apart from many of the leading brand products on the market today.
Features and Benefits
- SDK's available for a wide range of mobile OS, including iOS, Android, Blackberry, Symbian and Windows Mobile
- Rugged, drop resistant design
- IP42, IP54 (with optional case) certified: protection against dust and water
- 100 mm per second printing speed
- Dual headed MSR and smart card reader (option)
- Flexible connectivity including RS-232C, USB, optional Bluetooth or Wi-Fi (802.11b/g)
- Fast AC charger and long life battery (2.5 hrs charging time, 19 hrs stand-by)
- Large capacity paper roll (up to 56 mm OD)
- A range of industry standard printer drivers, including Blackberry
Sewoo LK-P30 3" rugged receipt/label printer with USB, serial, Bluetooth
The Sewoo LK-P30 3″ portable label printer is fast, with a print speed of 100mm per second, and light, weighing just 615 g including the battery. Perfect for labelling in stores, hospitals, warehouses and field applications such as PAT testing, the LK-P30 stands apart from many of the leading brand products on the market today.
Features and Benefits
- SDK's available for a wide range of mobile OS, including iOS, Android, Blackberry, Symbian and Windows Mobile
- Rugged, drop resistant design
- IP42, IP54 (with optional case) certified: protection against dust and water
- 100 mm per second printing speed
- Dual headed MSR and smart card reader (option)
- Flexible connectivity including RS-232C, USB, optional Bluetooth or Wi-Fi (802.11b/g)
- Fast AC charger and long life battery (2.5 hrs charging time, 19 hrs stand-by)
- Large capacity paper roll (up to 56 mm OD)
- A range of industry standard printer drivers, including Blackberry
-
LK-P30
HIGH SPEED AND TOUGH STRUCTURE FOR ACTUAL USAGE,
• Receipt/Label Printer
• Rugged drop resistant design
• Drop resistance : 1.8M onto concrete(with case)
• IP42, IP54(with case) certified :protection against dust and water
• 100mm/sec printing speed
• Adjustable paper width from 25.4 to 79.5mm±0.5mm
• Dual headed MSR & smart card reader(Option)
• Long life battery : 3.7Hrs charging time, 25Hrs stand- by
• Large capacity, paper rolls up to 56mm(OD)
PRINTING SPECIFICATION
PRINTING
• METHOD : Direct Thermal
• SPEED : 100mm/sec
• WIDTH : 72mm, 576 Dots/line
• DIRECTION : 203 DPI
DOT
• PITCH : 8 Dot/mm, 0.125 Pitch
BARCODE
• 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E,Codabar, Code93, Code128
• 2D : PDF417, QR Code, Maxicode
FONTS and GRAPHICS
• STANDARD FONTS : Seven Resident Fonts from 12-48 pt.
• OPTIONAL : International Character Sets
• SUPPORTS GRAPHICS, LINE AND BOX DRAWING : PCX and bitmap
• METHOD : Direct Thermal
• SPEED : 100mm/sec
• WIDTH : 72mm, 576 Dots/line
• DIRECTION : 203 DPI
DOT
• PITCH : 8 Dot/mm, 0.125 Pitch
BARCODE
• 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E,Codabar, Code93, Code128
• 2D : PDF417, QR Code, Maxicode
FONTS and GRAPHICS
• STANDARD FONTS : Seven Resident Fonts from 12-48 pt.
• OPTIONAL : International Character Sets
• SUPPORTS GRAPHICS, LINE AND BOX DRAWING : PCX and bitmap
PAPER SPECIFICATION
PAPER
• TYPE : Thermal receipt / Label
• WIDTH : 25.4 ~ 80mm
• THICKNESS : 0.06~0.16mm
• ROLL DIAMETER : Max. Ø 56mm
• ROLL CORE INNER DIAMETER : 8.5mm ± 0.5mm
• TYPE : Thermal receipt / Label
• WIDTH : 25.4 ~ 80mm
• THICKNESS : 0.06~0.16mm
• ROLL DIAMETER : Max. Ø 56mm
• ROLL CORE INNER DIAMETER : 8.5mm ± 0.5mm
INTERFACE
INTERFACE
• STANDARD : Serial(RS-232C), USB
• OPTION : Bluetooth Class 2, Wi-Fi(802.11b/g)
• STANDARD : Serial(RS-232C), USB
• OPTION : Bluetooth Class 2, Wi-Fi(802.11b/g)
HARDWARE SPECIFICATION
BATTERY CHARGER
• External Charger(Output 8.4VDC/0.8A)
BATTERY
• 7.4V / 2200mAh, 2600mAh Li-ion, 3.7 Hrs Charging Time25 Hrs Stand-by
SENSOR
• STARNDARD : Paper End, Gap, Black Mark, Cover Open
RELIABILITY
• TPH LIFE : 50km
• PULSE ACTIVATION : 50,000,000 pulse or more(12.5% Print Ratio)
TEMPERATURE
• OPERATING TEMPERATURE : -10 ~ 50℃
• STORAGE TEMPERATURE : -20 ~ 60℃
HUMIDITY
• OPERATING HUMIDITY : 35 ~ 80%
• STORAGE HUMIDITY : 10 ~ 90%
DROP RESISTANCE
• 1.8M onto concrete(with case)
IP
• IP42, IP54(with case) certified
CERTIFICATION
• KCC, CE, FCC, UL/cUL
• External Charger(Output 8.4VDC/0.8A)
BATTERY
• 7.4V / 2200mAh, 2600mAh Li-ion, 3.7 Hrs Charging Time25 Hrs Stand-by
SENSOR
• STARNDARD : Paper End, Gap, Black Mark, Cover Open
RELIABILITY
• TPH LIFE : 50km
• PULSE ACTIVATION : 50,000,000 pulse or more(12.5% Print Ratio)
TEMPERATURE
• OPERATING TEMPERATURE : -10 ~ 50℃
• STORAGE TEMPERATURE : -20 ~ 60℃
HUMIDITY
• OPERATING HUMIDITY : 35 ~ 80%
• STORAGE HUMIDITY : 10 ~ 90%
DROP RESISTANCE
• 1.8M onto concrete(with case)
IP
• IP42, IP54(with case) certified
CERTIFICATION
• KCC, CE, FCC, UL/cUL
EMULATION
EMULATION
• ESC/POS, CPCL Command compatible
• ESC/POS, CPCL Command compatible
DIMENSION
DIMENSION
• W x D x H(mm) : 120×152×70 (mm)
• W x D x H(inch) : 4.72×5.98×2.75 (inch)
WEIGHT
• 615g (with Battery)
• W x D x H(mm) : 120×152×70 (mm)
• W x D x H(inch) : 4.72×5.98×2.75 (inch)
WEIGHT
• 615g (with Battery)
| Products Model | Sewoo LK-P30 3" Printer + USB + RS232 + BT |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | Sewoo |
