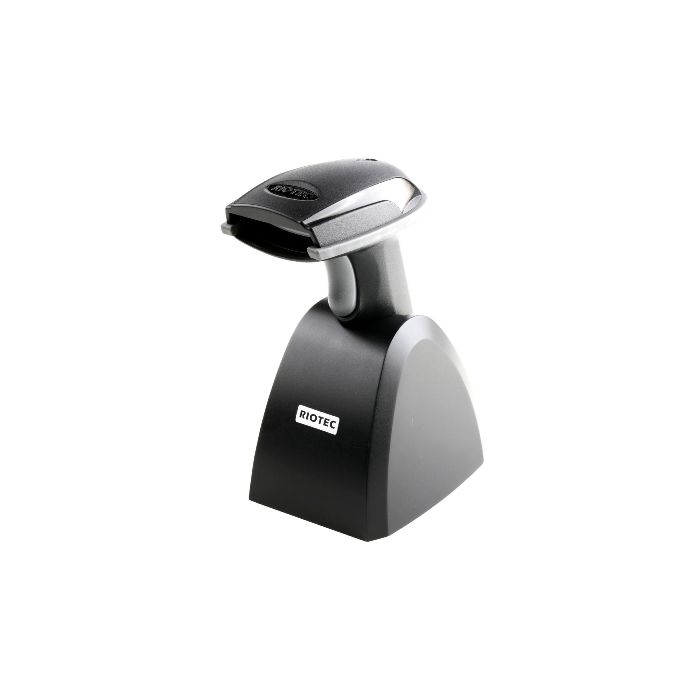

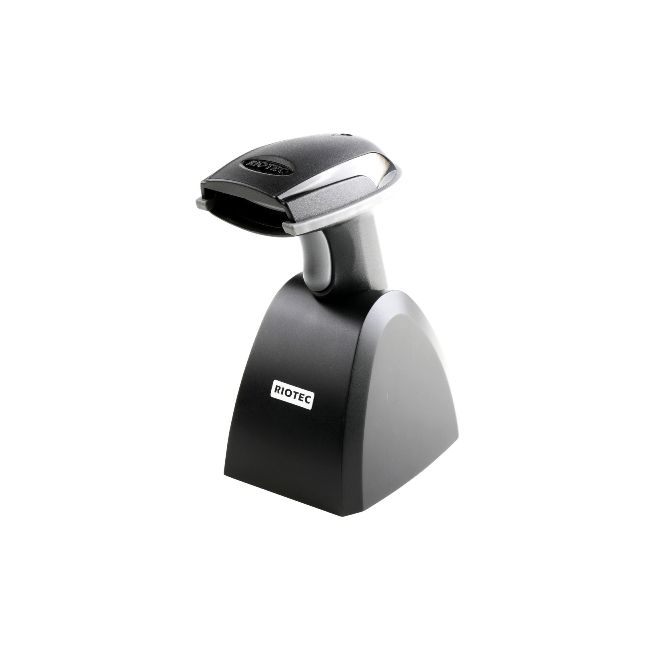

Riotec iLS6302ABU 1D (Motorola) Bluetooth barcode scanner

1D Wireless Laser Barcode Scanner

Features

˙ Built-in Motorola SE955 1D laser engine.
˙ With quicker decode rate.
˙ Multi - selection for different usage.
˙ High resolution up to 4 mils.
˙ Supports Apple iOS, Android, and Windows devices through Wireless
˙ 2.4GHz Wireless radio range: 100m in open area
˙ iLS6302ABM/BQ (with memory inside) support data transmission mode
  & data storage mode (batch mode)
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Cradle functions as 2.4G wireless receiver & charging stand
˙ Support interface: USB (Serial)/ USB(HID)

Scanners Specifications：

Model Name

iLS6302ABU
(without 1MB memory inside)

iLS6302ABQ
(with 1MB memory inside)

Description

2.4 GHz Wireless Laser Barcode Scanner

Engine

Motorola SE955

Performance Characteristics

Light Source

650 nm Laser Diode

Depth of Field (55 mils)

1410 mm (dependent on width of barcode)

Scan Speed

104(±)12 scans/sec (bi-directional)

Best Resolution

0.1 mm (4 mils) - Code 39

Print Contrast

Minimum 20% absolute dark/light reflectance measured at 650 nm

Scan Angle

47°±3° (typical)/ 35°±3°(narrow)

Indicators

green/red LED & beeper

Interface

USB (Serial)/ USB(HID)

Symbologies

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128,
UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39,
Code 32 (Italian Pharma Code), Code 93, Code 11,
Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar,
MSI, GS1 DataBar

Auto-sensing

Up to 180 mm (iLS6322AB,iLS6322ABU, iLS6322ABM, iLS6322ABQ only)

Electrical Characteristics

Input voltage

5 VDC ± 0.5 V

Current - operating

250 mA max

Radio Range

100M (2.4GHz Wireless, in open area)

RF Frequency

2.4GHz

Communication

SPP (Serial Port Profile) with cradle/ HID( HID profile)
with smart phone or tablet

Battery Type

AA NiMH rechargeable battery  1.2V x 2 (2.4V 2300mAH)

Scans per charge

more than 10,000 scans when fully charged

Charge Time

4 ~ 5 hours

Current Charging

500 mA Max.

Memory capacity

No memory inside

1MB
(can save 65,000 sets
more EAN 13 barcode)

Physical Characteristics

Dimension (L*W*H)

90 X 60 X 165 mm (for scanner)

Weight

 165 g +/- 5 g  (for scanner), 225 g +/- 5 g  (for cradle)

User Environment

Temperature-operation

   0℃ to 50℃

Temperature-storage

-10℃ to 60℃

Humidity

5% to 95% relative humidity, non-condensing

Ambient Light

Tolerant to typical artificial indoor and natural outdoor
(direct sunlight) lighting conditions

Shock

1.2 m drop onto concrete
