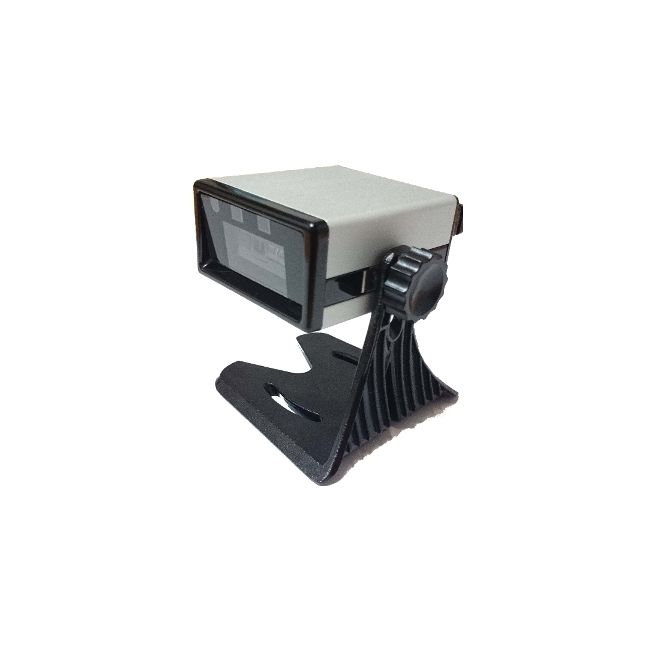

Riotec FS5022K 2D fixed mount USB barcode scanner (Motorola eng)

Riotec FS5022K 2D fixed mount USB barcode scanner (Motorola SE4500)

The Riotec FS5022K 2D fixed mount USB barcode scanner is the perfect device for use in point of sale scenarios when connect to a POS machine or checkout terminal in supermarkets or retail stores.

Product Description ˙
˙ Built-in Motorola SE4500 2D engine
˙ High performance:
  Depth of Field: 1D (100% UPC/EAN ) 430mm;  2D (15mils PDF417) 395mm
  Scan rate: 60 frame / sec (bi-directional)
  Best Resolution: 4 mils Code 39; 6.7 mils PDF417
˙ With strong Aluminum metal housing with a stand.
˙ Smart & Ultra-small compact design.
˙ Enhance user’s productivity in Auto-sensing.
˙ Suitable for production line, ATM, KIOSK, Stadium or other scanning applications.


Product specifications:

2D Wired Barcode Scanner
Features
	˙ Builtd in Motorola SE4500 2D engine. ˙ High quality Fixed mounted scanner. ˙ Aluminum metal housing with a stand. ˙ Smart & Ultra-small compact design. ˙ Enhance user’s productivity in Auto-sensing. ˙ Suitable for production line, ATM, KIOSK, Stadium or Leisure parks device.
Scanners Specifications：
	Model Name		FS5022K
	Description		Fixed-mount 2D barcode scanner
	Engine		Motorola SE4500
Performance Characteristics
˙	Aiming LED		655nm Laser
˙	Illumination Element		2x 625 nm LEDs
˙	Depth of field		1D (100% UPC/EAN): 430 mm 2D (15mils PDF417): 395 mm
˙	Scan Speed		60 frame /sec
˙	Sensor		CMOS (752×480 pixels)
˙	Best resolution		1D (4mils)：Code 39 2D (6.7mils)：PDF417
˙	Reading angle		Tilt: 360° / Pitch ±60° / Skew ±60°
˙	Print contrast		≥ 25%
˙	Indicators		LED & Beeper
˙	Interface		RS232, USB (Serial), USB (HID)
˙	Symbologies		UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI,      GS1 DataBar, PDF 417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec , RSS, Composite, TLC-39, MaxiCode, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX)
˙	Auto-sensing		Up to 200 mm
Electrical Characteristics
˙	Input voltage		5 VDC ± 0.5 V
˙	Current - operating		450 mA
Physical Characteristics
˙	Dimension		60 X 54 X 30 mm  (L *W *H)
˙	Weight		150 g +/- 5 g  (No cable)
˙	Case material		Rubber & ABS plastic
Environment
˙	Temperature-operation		0℃ to 50℃
˙	Temperature-storage		-40℃ to 70℃
˙	Humidity		5% to 95% relative humidity, non-condensing
˙	Ambient Light		Maximum 96900Lux. (direct sunlight)
Depth of Field
˙	4 mils Code 39		70 ~ 180 mm
˙	5 mils Code 39		44 ~ 200 mm
˙	10 mils PDF 417		60 ~ 290 mm
˙	15 mils PDF 417		68 ~ 395 mm
˙	10 mils QR code		55 ~ 190 mm
˙	15 mils QR code		85 ~ 280 mm
˙	10 mils Data Matrix		56 ~ 215 mm
˙	15 mils Data Matrix		66 ~ 330 mm
