Riotec DC9277A GODASCAN 1D CCD Wired OTG Barcode Scanner

Riotec DC9277A GODASCAN 1D CCD Wired OTG Barcode Scanner

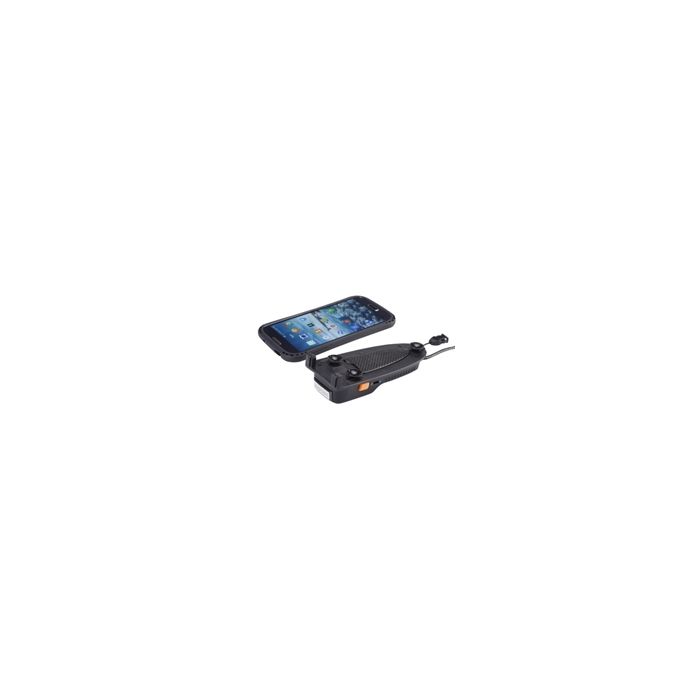

The Riotec DC9277 GODASCAN 1D CCD barcode scanner is a unique Plug and Play wired scanner for Android OTG phones, that will enable any Android PDA and smartphone to become a barcode scanner.

Product Description

With the Internet of Things (IOT), Android/iOS Smartphone becomes the tool for data collection. RIOTEC develops the "GODASCAN” which applied for Android/iOS smartphone use.

• DC9277A: Plug and Play (Wired, for Android OTG phone)
• With appropriate APP, the Android Smartphone becomes data collector.
• Touch trigger, Easy Operation
• GODASCAN can be used for different size of iOS / Android devices. (from 4” to 6” size)
• The back of GODASCAN has PU glue / sucker which can be stuck on smart-phone strongly. PU glue can be repeatedly used.
• GODASCAN has Li-Ion battery inside which provides power to scanner.
• You don’t remove GODASCAN when in charge. You can charge both GODASCAN & smartphone through its micro USB port directly.

Specifications:

Scanner Specifications：

• Model Name                     DC9277A
• Description                        Wired GODASCAN
• Engine                                 Ultra-long-range CCD engine

Performance Characteristics

• Light Source                      610nm~640nm Red LED
• Depth of Field                   UPCA (13mil): 50mm~620mm
• EAN13 (13mil):                 50mm~610mm
• Scan Speed                       300 scan/sec
• Best Resolution                 4 mil
• Print Contrast                    ≧30%
• Scan Angle                        Pitch ±60° @ 0° Roll and 0° Skew
•                                        Roll ±30° @ Pitch and  0° Skew
• Skew                             ±60° @ Roll and  0° Pitch

Indicators                           beeper

Charge                                 Micro USB port

Symbologies                      EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI

Interface                            USB OTG

Electrical Characteristics

• Input voltage                    5 V/DC ± 5%
• Current - operating         170 mA
• Radio Range       　           BT Class 1 (100m, in open area)
• RF Frequency    　           2.4GHz
• Communication 　           HID profile, SPP profile
• Battery Type      　           3.7V 900mAh Li-Ion battery
• Scans per charge:             more than 25,000 scans when fully charged
• Charge Time       　           4 ~ 5 hours
• Current Charging              500 mA Max.
• Power cable                      Micro USB cable

Physical Characteristics

• Dimension                                         125 X 52.5 X 35 mm  (L * W * H)
• Weight                                                88 g +/- 5 g

User Environment

• Temperature-operation:              '0°C to 50°C
• Temperature-storage                   -10°C to 60°C
• Humidity-operation                       20% to 95% relative humidity, non-condensing
