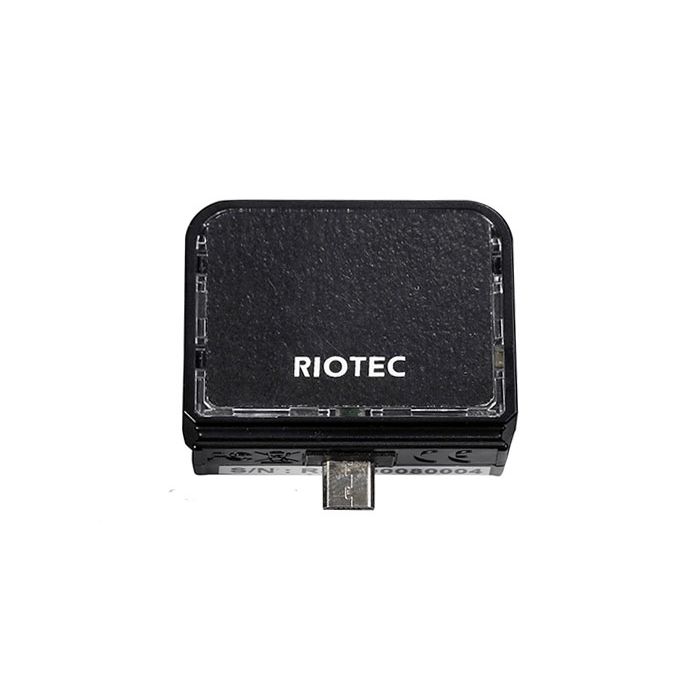

Riotec DC9250 1D MicroUSB Mini barcode scanner for Android
£94.80
£79.00
In stock
SKU
DC9250
Riotec DC9250 1D MicroUSB Mini barcode scanner for Android
The Riotec DC9250 1D MicroUSB Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC-9250 is connected to the unit via a MiniUSB port has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc .
Riotec DC9250 1D MicroUSB Mini barcode scanner for Android
The Riotec DC9250 1D MicroUSB Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC-9250 is connected to the unit via a MiniUSB port has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc .
RIOTEC DC9250 intelligent and ergonomic, handheld barcode reader will facilitate the work magazynierom, mobile and stationary retailers, pharmacists, couriers, logistics specialists, quality auditors and inspectors of manufacturing processes and all those who work in need of cataloging and storing information sczytanych barcode .
1D Barcode Scanner - Riotec DC9250 through MiniUSB connector (which ensures proper communication) is compatible with mobile devices (tablets / smartphones), having a built-in miniUSB connector.
Product Description
˙ 1D Mini Mobile Barcode Scanners are designed for Android OTG devices.
˙ DC9250/57: Plug & Play, No need extra driver
˙ DC9260/67: Wearing form design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
˙ Lightweight, ergonomically designed for easy operation
˙ With application, DC92xx series make Android OTG devices become data collector economically.
| Mini Mobile Barcode Scanner for Android OTG devices | ||||||
| Features | ||||||
| ˙ 1D/2D Mini Mobile barcode scanners are designed for Android OTG devices especially. ˙ DC9250/57J: Plug & Play, No need extra driver ˙ DC9260/67J: Wearing form design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity. ˙ Lightweight, ergonomically designed for easy operation ˙ With application, DC92xx series make Android OTG devices become data collector economically. |
||||||
| Specifications : | ||||||
| Model Name | DC9250 | DC9260 | DC9257J | DC9267J | ||
| Engine | RIOTEC 1D laser engine | 2D ENGINE | ||||
| Performance Characteristics | ||||||
| ˙ | Light source | 650 nm Laser Diode | 625±10 nm LED | |||
| ˙ | Depth of field | Up to 520 mm | 1D (15 mils PDF417)：265 mm | |||
| ˙ | Scan speed | 100 scans/sec | 60 frame /sec | |||
| ˙ | Best resolution | 0.1mm ( 4 mils) - Code 39 | 1D (5mils)：Code 39 | |||
| ˙ | Scan Angle | 38° | Tilt: 360° / Pitch ±55° / Skew ±55° | |||
| ˙ | Interface | Mini USB/ Micro USB | Mini USB/ Micro USB | |||
| ˙ | Print contrast | 45% or more | ≧25% | |||
| ˙ | Symbologies | Code 128, coda bar, interleave 25, Industrial 25, matrix 25, China postage, UPC-A, UPC-E, EAN-13, EAN-8, MSI, PLESSEY, code11, code 39, code 32, code 93, TELEPEN … (GS1, RSS is optional) |
PDF417, Data Matrix, QR Code, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Plessey, MSI-Plessey |
|||
| Electrical Characteristics | ||||||
| ˙ | Input voltage | Smart Phone / Tablet Power | Smart Phone / Tablet Power | |||
| ˙ | Current - operating | 65 mA max | 400 mA max | |||
| Physical Characteristics | ||||||
| ˙ | Dimension (L*W*H) | 43 X 40 X 16 mm | 43 X 34 X 16 mm (without cable) 59X20X12mm (Holder, without strap) |
43X40X16mm | 43 X 34 X 16 mm (without cable) 59 X 20 X 12 mm (Holder, without strap) |
|
| Color | Black / White | Black / White | ||||
| ˙ | Weight | 20 g | 48 g | 20 g | 52 g | |
| Environment | ||||||
| ˙ | Temperature- operation |
0℃ to 50℃ | 0℃ to 50℃ | |||
| ˙ | Temperature-storage | - 20℃ to 60℃ | -40℃ to 80℃ | |||
| ˙ | Humidity-operation | 10% to 85% relative humidity, non-condensing |
5% to 95% relative humidity, non-condensing |
|||
| Decode Zone | ||||||
| ˙ | 4 mils Code 39 | 80 ~ 105 mm | - | |||
| ˙ | 5 mils Code 39 | 75 ~ 135 mm | - | |||
| ˙ | 10 mils Code 39 | - | 35 ~ 205 mm | |||
| ˙ | 13 mils Code 39 | 65 ~ 250 mm | - | |||
| ˙ | 20 mils Code 39 | 65 ~ 350 mm | - | |||
| ˙ | 40 mils Code 39 | 85 ~ 520 mm | - | |||
| ˙ | 10 mils PDF417 | - | 50 ~ 215 mm | |||
| ˙ | 10 mils QR Code | - | 55 ~ 140 mm | |||
| ˙ | 10 mils Data Matrix | - | 50 ~ 160 mm | |||
| Products Model | Riotec DC9250 1D MicroUSB Mini barcode scanner for Android |
|---|---|
| Manufacturer | Riotec |
