Riotec DC-9260 1D MicroUSB Wearable barcode scanner for Android

Riotec DC-9260 1D MicroUSB Wearable Mini barcode scanner for Android

The Riotec DC-9260 1D MicroUSB Wearable Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC-9260 is connected to the unit via a MiniUSB port has been designed with users in mind, for which it is necessary to meticulous cataloging of all available information logistics in the form of electronic databases, spreadsheets, lists, forms, etc .

1D Barcode Scanner - Riotec DC-9260 through MiniUSB connector (which ensures proper communication) is compatible with mobile devices (tablets / smartphones), having a built-in miniUSB connector.

Product Description

• 1D Mini Mobile Barcode Scanners are designed for Android OTG devices.
• DC9250/57: Plug & Play, No need extra driver

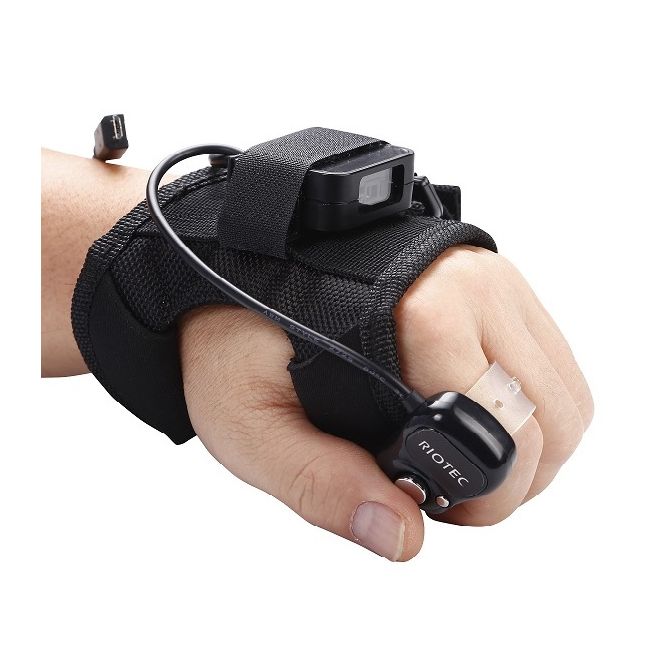

• DC9260/67: Wearing form design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
• Lightweight, ergonomically designed for easy operation



Specifications:

• Model Name                                     DC9260
• Weight                                             48 g
• Engine                                              RIOTEC 1D laser engine 2D ENGINE

Performance Characteristics

Light source                                      650 nm Laser Diode        625±10 nm LED

Depth of field                                    Up to 520 mm   1D (15 mils PDF417): 265 mm

Scan speed                                        100 scans/sec    60 frame /sec

Best resolution                                 0.1mm (4 mils) - Code 39              1D (5mils): Code 39

Scan Angle                                        38° Tilt: 360° / Pitch ±55° / Skew ±55°

Interface                                            Mini USB/ Micro USB      Mini USB/ Micro USB

Print contrast                                     45% or more      ≧25%

Symbologies                                      Code 128, coda bar, interleave 25, Industrial 25, matrix 25, China postage, UPC-A, UPC-E, EAN-13, EAN-8, MSI, PLESSEY, code11, code 39, code 32, code 93, TELEPEN …(GS1, RSS is optional)  PDF417, Data Matrix, QR Code, Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN-128, GS1 Databar,  Matrix 2 of 5, Code 11, Industrial 2 of 5, Plessey, MSI-Plessey

Electrical Characteristics

Input voltage                                Smart Phone / Tablet Power       Smart Phone / Tablet Power

Current - operating                       65 mA max 400 mA max

Temperature Operation                  0℃ to 50℃           0℃ to 50℃

Temperature-storage                     -20℃ to 60℃     -40℃ to 80℃

Humidity-operation                       10% to 85% relative humidity, non-condensing 5% to 95% relative humidity, non-condensing

Decode Zone

• 4 mils Code 39                  80 ~ 105 mm
• 5 mils Code 39                  75 ~ 135 mm
• 10 mils Code 39                -35 ~ 205 mm
• 13 mils Code 39                65 ~ 250 mm
• 20 mils Code 39                65 ~ 350 mm
• 40 mils Code 39                85 ~ 520 mm
• 10 mils PDF417                -50 ~ 215 mm
• 10 mils QR Code               -55 ~ 140 mm
• 10 mils Data Matrix         -50 ~ 160 mm
