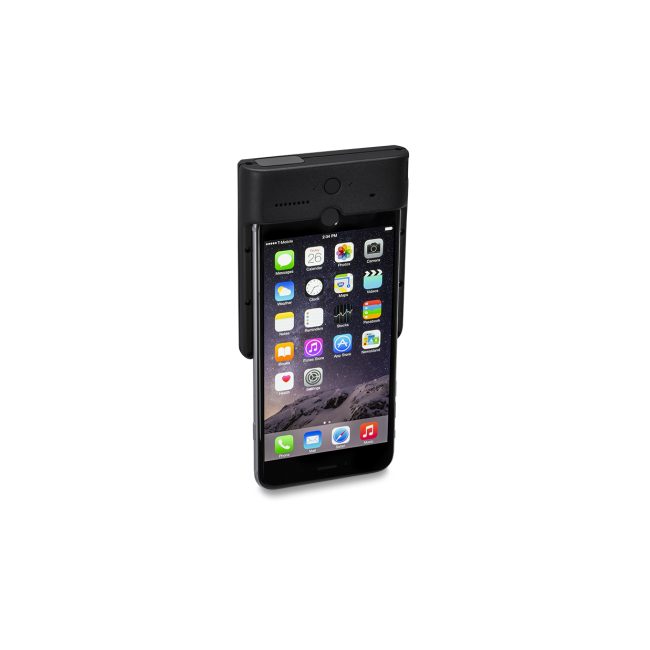

Linea Tab Mini 2D Barcode Scan, Mag Stripe, Bluetooth & RFID for iPhone 6 Plus
£478.80 £399.00
In stock
SKU
LTMSBTRF2D-IP6+
Linea Tab Mini 1D barcode scanner, magnetic stripe reader, Bluetooth and RFID for Apple iPAD Mini
The Linea TAB Mini allows mobile workers to convert their Apple iPad® into a powerful point-of-sale solution for retail, warehousing, supply chain, ticketing and hospitality industries. The Linea TAB Mini includes a 1D or 2D barcode scanner, 3-tracks magnetic stripe reader, (optional secure encrypting MSR module), optional contactless card reader, Bluetooth, optional RFID and a rechargeable battery in a very compact and durable protective case .
Linea Tab Mini 2D barcode scanner, magnetic stripe reader and Bluetooth for Apple iPAD Mini
Linea Tab Mini allows mobile workers to convert their iPad Air, iPad Air 2, iPad mini 2, iPad mini 4, iPhone 6+ into a powerful point-of-sale solution.
The Linea Tab Mini includes a 2D barcode scanner and optional functions like 3-track magnetic card reader, secure MCR, contactless card reader, Bluetooth and a rechargeable battery in a very compact and durable protective case.
Specifications:
Keyboard and Buttons:
Scan button
Magnetic Card Reader:
Triple track bi-directional
Encrypting Magnetic Card Reader:
Triple track bi-directional (optional):
AES-256, DUKPT for AES-128 and 3DES
Contactless Card Reader:
(optional) Supports:
VISA, MasterCard, American Express, Discover MiFARE Mini
MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO / IEC 14443 A&B
ISO / IEC 15693
DESFire
FeliCa
2D Barcode Reader:
Opticon MDI3100* - image sensor 752x480 CMOS (optional)
Newland EM2049 – image sensor 752x480 CMOS (optional)
Supported 1D and 2D Symbology:
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code128, GS1-128 (EAN-128), GS1 DataBar(RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5,MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal codes: Chinese Post, Intelligent Mail Barcode,Korean Postal Authority code Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F,Composite codes, Data Matrix (ECC200/EC0-140),Maxi Code(mode 2~5), MicroPDF41,QR & Micro-QR Code, PDF417
Connectivity:
Apple 9 pin connector
Pass-through sync through mini USB
BT 2.0 Class 2 (option)
- SPP - Serial Port Profile
External serial port
Device Compatibility:
iPad Air, iPad Air 2, iPad mini 2, iPad mini 4, iPhone 6+
LED Indication:
2 LEDs for battery and device status
4 LEDs for contactless payment transactions
Audio Features:
Electro-Magnetic Buzzer
Power Supply:
DC 5V through mini USB
DC 5V through Single or 5 stations charger
Battery:
Rechargeable Li-Ion Battery 3.7V / 1100 mAh
Reliability:
1 000 000 magnetic card swipes
Certificates:
CE, FCC, PCI PTS 3.x, EMV Level 1 Contactless, VISA payWave, MasterCard Contactless, American Express expressPay, Discover Zip, Apple® Mfi
Dimension W x D x H:
103 x 88 x 24 mm
Weight:
140 g with battery and 2D barcode reader
(without iPad mini)
Operational temperature range:
-10 °C to +40 °C / 5 to 90% RH
Storage temperature range:
-20 °C to +50 °C / 5 to 90% RH
Compatible Accessories:
Single charger (GT1)
5 stations charger (GT5)
Holsters
Stand
| Products Model | Linea Tab Mini 2D Barcode Scan, Mag Stripe, BT, RFID for iPhone 6 Plus |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Datecs |
Write Your Own Review
