Linea Pro 6 2D Barcode Scanner, Mag Stripe

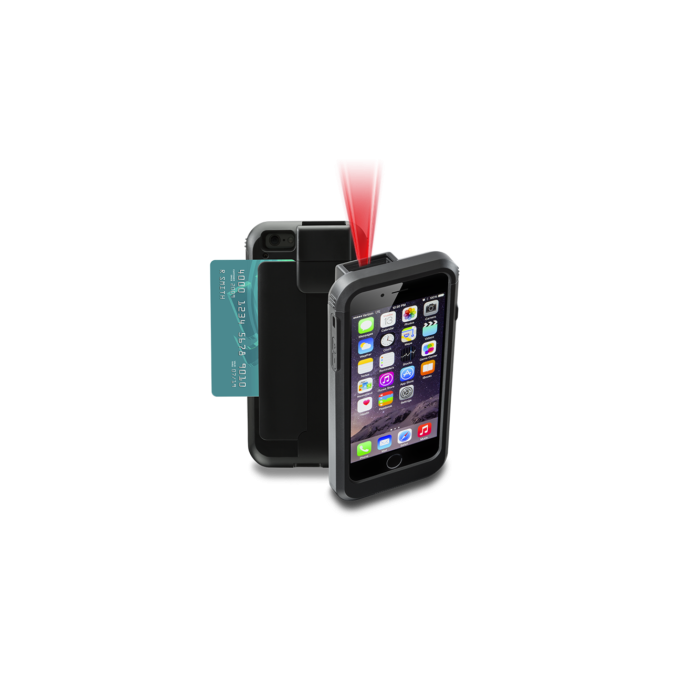

Linea Pro 6 2D barcode scanner with credit card swipe for Apple iPhone 6

Smart Mobile POS is offering the latest Linea Pro 6 is designed for the iPhone 6 for mobile barcode and POS applications. The Linea Pro 6 is a combination barcode scanner/credit card swipe reader with options of Bluetooth and RFID reader. The iPhone 6 attaches via the connector at the bottom of the Linea Pro for direct communication and acts as a backup power source for the iPhone 6 as well as powering the barcode reader the smartphone is housed in the case. The Linea Pro 6 is the perfect all in one solution for adding barcode and RFID functionality to the iPhone 6.

*iPhone 6 is not included

• Modes of operation: Active (turn on Linea PRO) / Active with Scanning / Stand By (after 5sec without operation mode)

Buttons
• Volume Up Button
• Volume Down Button
• Status Battery Button
• Scan Button

Barcode Type
• 1D - UCC/EAN 128, EAN 13, EAN 8, UPC A, UPC E, UPC E1, Code 11, Code 39, Code 93, Code 128, Matrix 2 to 5, Code 11,2 of 5 industrial, 2 of 5 interleaved, Codebar, MSI/Plessey, UK/Plessey, IATA, ISBN, ISMN, ISSN, S-code, Telepen, RSS 14 , RSS Limited, RSS- Expanded
• 2D: PDF417, micro PDF417, Data Matrix, QR code, Aztec code, Maxi code, Micro QR code

• LEDs: 3 green LEDs for status of Battery Charging and status of the Device
• Other: Electro-Magnetic Buzzer

Communication
• RS232 Interface - communication between Linea Pro & iPHONE 6
• USB Interface - USB Synchronization between iPHONE 6 & PC

• RS232 Interface: Speed: 57600bps, iPhone RS232 Protocol

• MCU Hitachi: HD64F368
• Memory: 512k I2C EEPROM memory - for Linea PRO 4.0 settings
• Magnetic Stripe Reader: 3-track bidirectional reading capabilities, Type: ISO 7816-1/2/3 compatible & RAW mode
• Barcode Reader: MDL-1000 - Laser Scan Engine 1D Barcode, MDI-2000 – Auto-focus Imager Scan Engine 2D Barcode

Power consumption
• Active with Scanning: 1D Engine – 110mA; 2D Engine - 230mA
• Active - approximately 25mA
• Stand by - 10µA

Environment
• Operating: 0°C to +40°C; 35 to 85% RH
• Storage: -5°C to +40°C; 10 to 90% RH

Cables
• Standard USB A to mini B cable
• USB DOWNLOAD cable (option)
