Linea Pro 5 1D Barcode Scanner, Mag Stripe for iPod Touch 5

Linea Pro 5 1D Barcode Scanner, Mag Stripe for iPod Touch 5

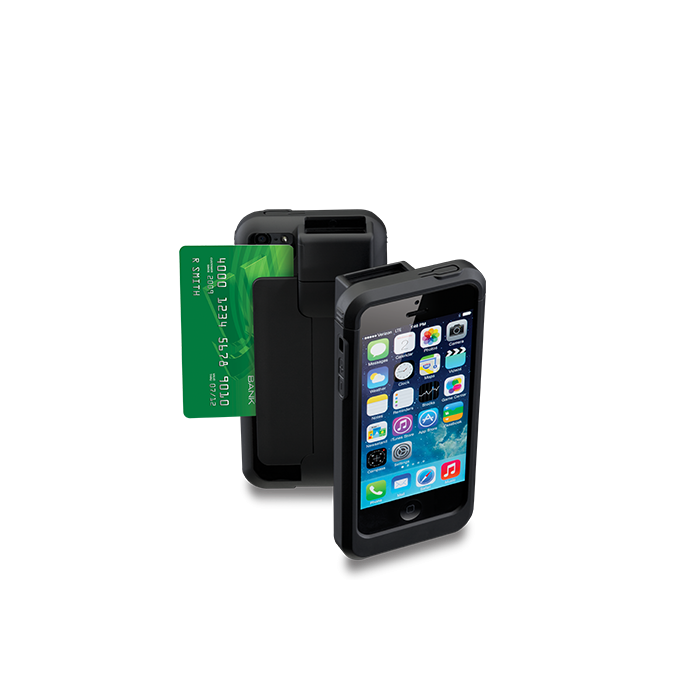

The Linea Pro 5 is designed for the iPhone 5 / 5SE and iPod Touch 5 for mobile barcode and POS applications. The Linea Pro 5 is a combination barcode scanner/credit card swipe reader with options of Bluetooth and RFID reader. The iPhone 5 or iPod Touch 5 attaches via the connector at the bottom of the Linea Pro for direct communication and acts as a backup power source for the iPhone 5 as well as powering the barcode reader the smartphone is housed in the case. The Linea Pro 5 is the perfect all in one solution for adding 1D or 2D barcode and RFID functionality to the iPhone 5 / 5SE and iPod Touch 5.

*iPod Touch not included

Modes of operation: Active (turn on Linea PRO) / Active with Scanning / Stand By (after 5sec without operation mode)

Specification:

• Power supply: Internal voltage 3.3V & 5V
• Battery: Rechargeable Li-Ion Battery 3.7V / 1300 mAh, charging from USB port or DATECS Single/Gang Charger
• Power Consumption: Deep sleep ∼ 20 μA
• MCU: 32-bit ARM™ Cortex™ - M3 based Microcontroller
• Communication Interface: USB Interface - between Linea Pro 5 and iPhone5®/iPod5®
• USB Synchronization between Apple iPhone5®/iPod5® & PC
• Buttons: Scan and Status Buttons
• Magnetic Stripe Reader: 3-track bidirectional reading capabilities
• Type: ISO 7816-1/2/3 compatible & RAW mode

Secure Encrypting MSR:

• Module PCI PTS 3.x SRED compliant
• DUKPT and Fixed Key Management
• 3DES-112, AES-128, AES-256 encryption algorithms

RFID Card Reader (option)

• MiFARE Mini
• MiFARE Classic 1K / 4K
• MiFARE Ultralight / Ultralight-C
• MiFARE Plus 2K / 4K
• ISO 14 443
• ISO 15 693
• DESFire card
• FeliCa

Bluetooth Communication (option)

• Bluetooth 2.0
• Class 2
• Distance - up to 10 m
• Serial Port Profile

Barcode Reader (option)

• 1D • MDL-1000 Laser Scanning Engine
• 2D • EM3070 High Performance 2D Imager Scanner
• 2D • EA-30 High Performance 2D Imager Scanner

Supported Barcode Types

UCC/EAN 128, EAN 13, UPC A, Code 128, Code 39, 2 of 5 Industrial, Micro QR code, QR code, RSS-Expanded, EAN 8, UPC E/E1, GS1, RSS 14, 2 of 5 Interleaved, Data Matrix, PDF417, MSI/Plessey, ISBN, IATA, Code 93, Codebar, S-code, RSS Limited, Maxi Code, UK/Plessey, ISSN, ISMN, Code 11, Telepen, Matrix 2 to 5, Micro PDF417, Aztec Code

• LEDs: 4 LEDs for battery status
• Audio Indicator: Buzzer
• Weight, g: 120 with Battery and 2D Barcode Reader EA30 (without iPod5 / iPhone5)
• Dimensions: (LxWxH), mm142 x 69 x (22 with 1D Barcode Reader) / (27 with 2D Barcode Reader)
• Operating: 0°C to +40°C / 35 to 85% RH
• Storage: -5°C to +50°C / 10 to 90% RH
• Cables (option) Standard USB A to mini USB B cable (0.9 m)
• Compatibility     Apple iPod 5
• Apple iPhone 5 / 5SE
