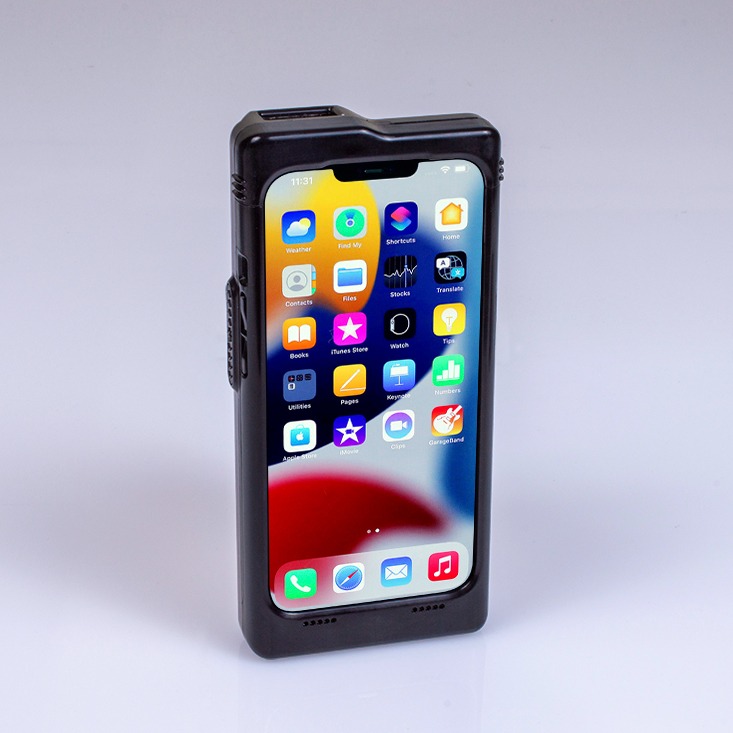

Linea Pro 13-14i Industrial 2D barcode scanner sled Zebra SE4750SR scanner for iPhone 13 & 14

Linea Pro 13-14i Industrial 2D barcode scanner sled Zebra SE4750MR scanner for iPhone 13/14 (standard range)


The Linea Pro 13-14i Industrial barcode scanner sled for the iPhone 13 and 14 generations represents the next step in iOS enterprise mobility solutions. It offers fast and reliable scanning for both 1D and 2D barcodes, with additional options for contactless HF RFID, NFC, Apple VAS, Google Tap, and UHF RFID.

Built to be rugged and durable, this device has an IP65 rating, ensuring it can withstand harsh work environments. It is completely sealed to protect against dust, debris, and projected water jets, and is drop-rated to exceed MIL-STD-810G standards.

Equipped with high-capacity, hot-swappable batteries, the Linea Pro 13-14i is designed for continuous use, making it suitable for demanding workflows. Additionally, the USB Type-C interface allows for fast charging and data synchronization.

It's comfortable and ergonomic design makes it easy to use for extended periods. With a growing range of accessory options, the Linea Pro 13-14i Industrial is the clear preferred choice for various industries.

Specifications:

CPU
ARM Cortex M4

Buttons
2 scan buttons

Contactless Reader (optional)
NFC-A, ISO 14443 Type A
NFC-B, ISO 14443 Type B
NFC-F, Felica
NFC-V, ISO 15693

Barcode Reader
2D Opticon MDI-4000 640 x 480 (optional)
2D Zebra SE4750 SR/MR 1280 x 960 (optional)
2D Zebra SE4770 1280 x 960 CMOS (optional)
2D Honeywell N6803MR/FR 1920 x 800 Global shutter (optional)

Symbologies (2D Opticon MDI-4000)
MDI-4000: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey, POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET, Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Connectors
USB Type-C port
Lightning connector (cradle)
SAM holder
Docking connector

Wired Communication
Serial communication (USB Type-C port)
Serial communication (Docking connector)

Device Compatibility
iPhone 13
iPhone 14

Audio Features
Electromagnetic buzzer

Power Supply
DC 5 V through USB
DC 5 V through docking connector

Battery
Rechargeable Li-Ion Battery 3.6 V, 2330 mAh Fuel Gauge

Dimension W x D x H
80 x 171 x 28 mm

Weight
164 g

Operational Temperature
-10 °C to 40 °C / 5 to 90% RH

Storage Temperature
-20 °C to 50 °C / 5 to 90% RH

Drop Tested
1.2 m faces and edges



Other Box Contents

LineaPro 13 Industrial device
USB Type-A to USB Type-C cable
