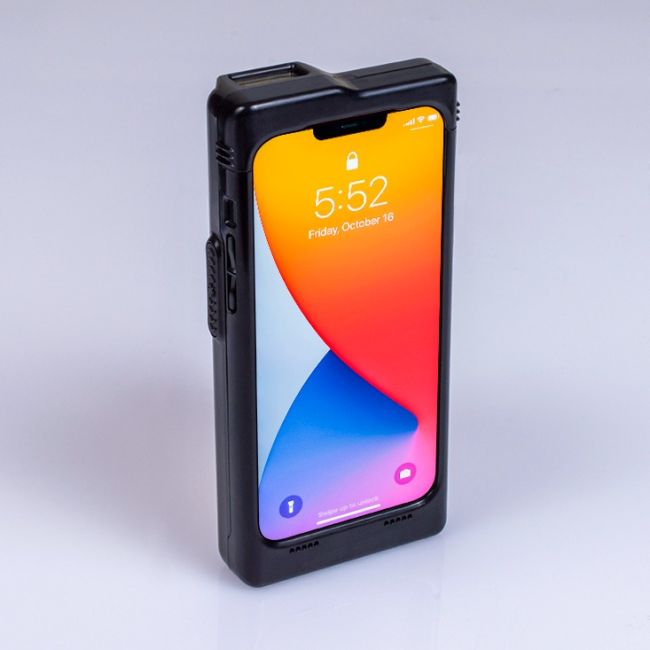

Linea Pro 12i Industrial 2D barcode scanner sled Zebra SE4770 for iPhone 12

Linea Pro 12i Industrial 2D barcode scanner sled Zebra SE4770 for iPhone 12

The Linea Pro 12i is a high-performance industrial 2D barcode scanner sled featuring the Zebra SE4770 scan engine, designed specifically for the iPhone 12. This advanced scanning solution delivers fast, precise barcode capture, making it ideal for industries such as retail, warehousing, logistics, and inventory management.

Equipped with rugged durability and seamless iOS integration, the Linea Pro 12i supports 1D and 2D barcode scanning, RFID capabilities, and mobile point-of-sale (POS) applications. Its ergonomic design ensures comfortable, extended use, while the Zebra SE4770 scan engine enhances performance with superior motion tolerance and wide-angle scanning.

Boost productivity and streamline operations with the Linea Pro 12i – the perfect solution for businesses requiring a reliable, high-speed barcode scanning device for the iPhone 12.

Specifications:

Processor
ARM CortexM4

Buttons
2 scan buttons

Contactless Reader (optional)
NFC-A, ISO 14443 Type A
NFC-B, ISO 14443 Type B
NFC-F, Felica
NFC-V, ISO 15693

Barcode Reader
2D Opticon MDI-4000 640 x 480 CMOS (optional)
2D Zebra SE4750 SR/MR 1280 x 960 CMOS (optional)
2D Zebra SE4770 1280 x 960 CMOS (optional)
2D Honeywell N6803MR/FR 1920 x 800 Global shutter (optional)

Symbologies
BARCODE 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Connectors
USB Type-C port, Lightning connector (cradle) SAM holder Docking connector

Wired Communication
Serial communication (USB Type-C port)
Serial communication (Docking connector)

Device Compatibility
iPhone 12

Audio Features
Electromagnetic buzzer

Power Supply
DC 5 V through USB
DC 5 V through docking connector

Battery
Rechargeable Li-Ion Battery
3.6 V, 2330 mAh
Fuel Gauge

Dimension W x D x H
73 x 155 x 28 mm

Weight
164 g

Operational Temperature
-10 °C to 40 °C / 5 to 90% RH

Storage Temperature
-20 °C to 50 °C / 5 to 90% RH

Drop Tested
1.2 m faces and edges

Other Box Contents
LineaPro 12i Industrial device
USB Type-A to USB Type-C cable
