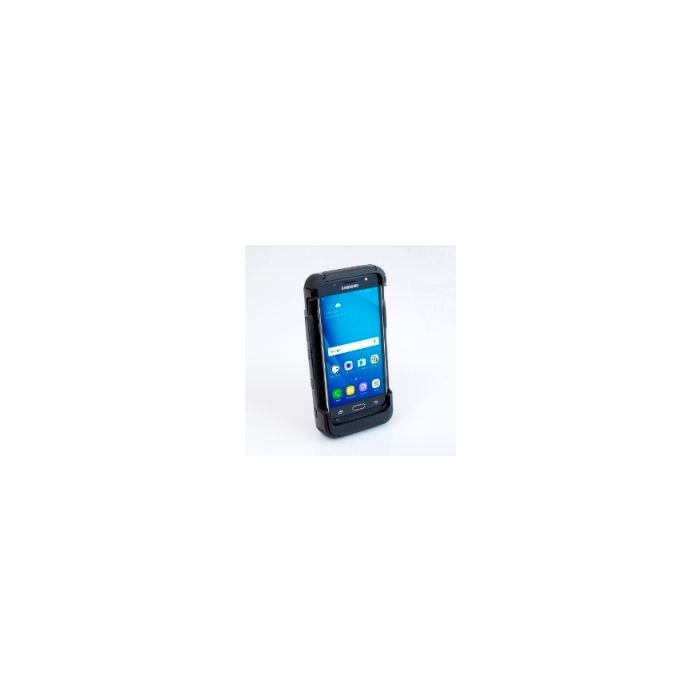

Linea J 2D Barcode Scanner Sled for Android (Newland)

LINEA J

With 2D Newland EM3396 Scan Engine and Price includes Ruggedised case

Linea J allows mobile workers to convert their Samsung J5 into a powerful point of sale solution. It comes with a 2D barcode scanner as well as NFC contactless card reader making it a perfect solution for today's fast paced world.

Keyboard and Buttons

• Two Scan buttons
• Reset device button

Contactless Card Reader                              (optional) Supports:

• MiFARE Mini
• MiFARE Classic 1K / 4K
• MiFARE Ultra-Light / Ultra-Light-C
• MiFARE Plus 2K / 4K
• ISO 14443 A&B
• ISO 15693
• DESFire
• FeliCa

Supported 1D and 2D Symbology

1D symbologies: EAN/UPC, GS1 Databar (limited expanded & omni-directional), RSS, Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)

2D symbologies: Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec, GS1 composite codes, Direct Part Marking Reading multicodes and barcodes on mobile phone screens available.

Connectivity

• Micro USB
• Pass-through sync through USB Type-C

Device Compatibility                                Samsung J5 (2016)

Audio Features                                        Electro-Magnetic Buzzer

Vibration Capabilities                              Micro Vibration Motor – Rated speed: 14,000 ± 2,000rpm

Power Supply

• DC 5V through USB type-C
• DC 5V through single or 5 station charger

Battery

• Rechargeable Li-Ion Battery 3.7V / 2100mAh
• Precise battery management by Fuel Gauge microcontroller for remaining battery capacity

Dimension

• W x D x H83 x 171 x 37 mm with holster
• 77 x 164 x 34 mm without holster
• Weight214 g with holster
• 174 without holster

Operational temperature range                -10 °C to +40 °C / 5 to 90% RH

Storage temperature range                      -20 °C to +50 °C / 5 to 90% RH

Compatible Accessories

• Single charger (GT1)
• 5 stations charger (GT5)
• Holster
• Hand Strap
