Linea iMED Rugged 2D Barcode Scanner + Bluetooth + RFID

Linea iMED rugged 2D barcode scanner, Bluetooth and RFID reader for iPod Touch 5 & 6

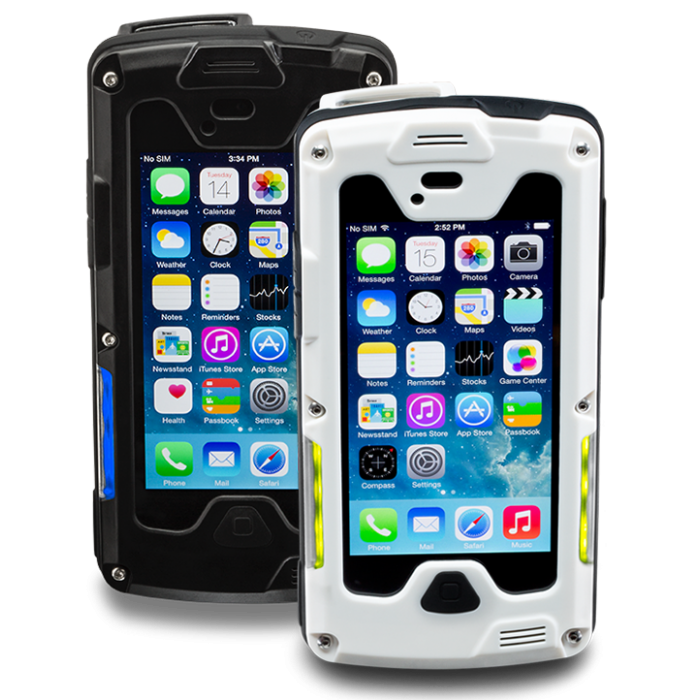

The Linea iMED is a ruggedised case for the iPhone 5/5S or iPod Touch 5/6 with integrated 2D barcode scanner, Bluetooth, RFID reader and a rechargeable battery. The Linea iMED stands up to the rigors of demanding environments like warehousing and field services due to its ruggedised case and combines the functions of many devices into one, bringing new efficiency to environments like healthcare. Linea iMED allows medical workers to convert their iPod® or iPhone® into a powerful tool helping them to easily check or assign patient treatments.

All versions include a 2D barcode scanner, RFID reader and Bluetooth.

Suitable for use with the iPhone 5/5S or iPod 5/6.

FEATURES

Battery

• User-replaceable rechargeable hard pack Li-polymer Battery 3.7V 1900mAh
• Charging via USB connector through mini-USB cable, using a minimum of 1A USB charger (AC adapter provided by Apple® is acceptable). Optional charger station (sold separately)

Barcode Scanner

• 2D High Speed Imager, Aimer; 650nm Class 2 laser.
  Image sensor 742 x 480 CMOS

RFID- Options

• MIFARE MINI
• MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
• MIFARE ULTRALIGHT, ULTRALIGHT-C
• ISO 14443, ISO 15693
• MIFARE PLUS 2K/4K
• DESFire card
• FeliCa

I/O Connectors

• 9 - pin Lightning Connector
• 10 - pin female Mini - B USB connector for charging and synchronization

Bluetooth Communication

• Bluetooth 3.0
• Class 2Distance - Up to 10m
• Serial Port Profile (SPP)

Indicators

• 4 programmable color LEDs (green, blue, red and orange)

Buttons

• Scan button
• Battery status button
• Speaker front/rear toggle button

Made for iPhone - means that an electronic accessory has been designed to connect specifically to iPhone 5/5S and iPod 5/6, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone may affect wireless performance.

• 1D and 2D Scanner Options
• Ruggedized Case – Protective Tempered Glass/IP54+ Dust/Fluid Protection/4ft Drop to Concrete
• LED Alerts
• Hot Swappable Battery
• VOIP Compatible Microphone and Front/Rear Speakers
• RFID – 13.56MHz Read/Write
• Bluetooth 3.0
• Full SDK available for the IOS platform
