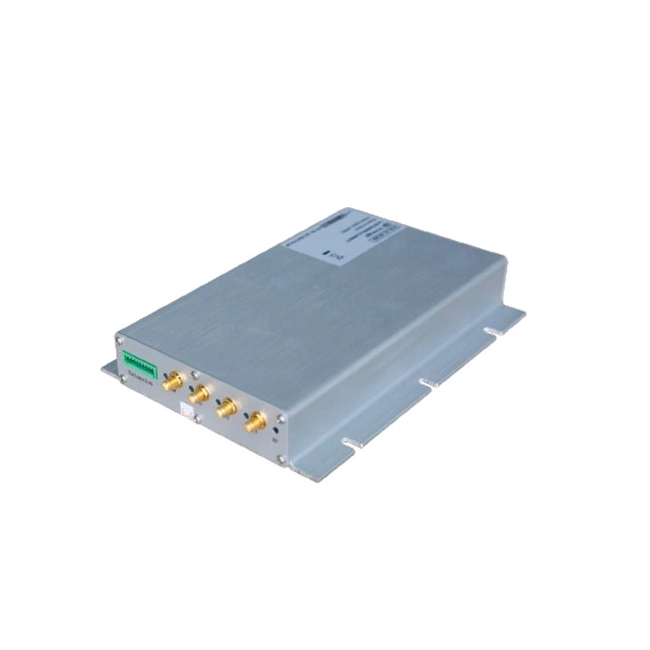

Invengo XC-RF300 HF RFID Reader
£1,030.80
£859.00
In stock
SKU
XC-RF300
lnvengo's XC-RF300 is a high-performance, high-power, long-distance HF reader that supports ISO/EC18000-3M1 protocol. It is completely in-house designed with independent iP, using advanced digital signal processing technology, combined withhighly efficient anti-colision algorithms, it achieves fast read/write processing while maintaining high tag inventory speed. XC-RF300 can be widely used in smart shelves, unmanned retail, logistics, personnel identification, conference check-in, accesscontrol, anti-counterfeit, production process control and many other loT system applications.
Invengo XC-RF300 HF RFID Reader
lnvengo's XC-RF300 is a high-performance, high-power, long-distance HF reader that supports ISO/EC18000-3M1 protocol. It is completely in-house designed with independent iP, using advanced digital signal processing technology, combined withhighly efficient anti-colision algorithms, it achieves fast read/write processing while maintaining high tag inventory speed. XC-RF300 can be widely used in smart shelves, unmanned retail, logistics, personnel identification, conference check-in, accesscontrol, anti-counterfeit, production process control and many other loT system applications.
Main Features of XC-RF300 High Performance Antenna
-
Support ISO15693/ISO18000-3M1 protocol RFID label
-
RF output power 0.5~5W adjustable
-
4 antenna ports with SMA connector, can be directly connected with a 50Ω standard HF RFID antenna, effective reading distance can reach more than 0.8m
-
Advanced tag anti-collision processing algorithm, superior recognition rate
-
Antenna status and device temperature monitoring
-
Tag signal strength RSSI detection
-
Built-in Linux operating system, manage and display tag data, reader status, configurations and firmware upgrade through the web app
Specifications of XC-RF300 High Performance Antenna
| RF Specifications | Operating Frequency | 13.56MHz ±7kHz |
| RF output power | 0.5W ~ 5W, 0.5~5W adjustable by 0.5W step | |
| Antenna port | 50Ω | |
| Modulation Mode | ASK | |
| Modulation Index | 10% or 100% | |
|
Air-interface Protocol |
ISO15693/ISO18000-3M1 Support ISO15693/ISO18000-3M1 protocol RFID label |
|
| Anti-collision Capability | >60tags/s | |
| Reading Distanc | Not less than 0.8m (affected by an- tenna, label, working environment) | |
| Interface Parameters | Power input | DC+24V |
| Antenna port | 4 port SMA | |
| TCP/IP |
10/100MHz 1x 10/100MHz Adaptive Ethernet |
|
| Serial port | 1x RS485 | |
| IO | 2x GPIO | |
| Multi-reader | 1x sync port | |
| synchronization | Expansion | 1x counter board connection port |
| Physical Parameters | Dimension | 223mm x 166mm x 36mm |
| Weight | 0.8 kg(1.8 lbs.) | |
| Shell material | Aluminumy | |
| Environmental Parameters |
Operating temperature |
0°C 〜+55°C |
|
Storage Temperature |
-20°C 〜+70C | |
| Power Supply | DC24V, Power Consumption < 40W | |
|
EMC Standard compliance |
CE & FCC |
| Products Model | Invengo XC-RF300 HF RFID Reader |
|---|---|
| RFID reader | HF RFID |
| Manufacturer | Invengo |
