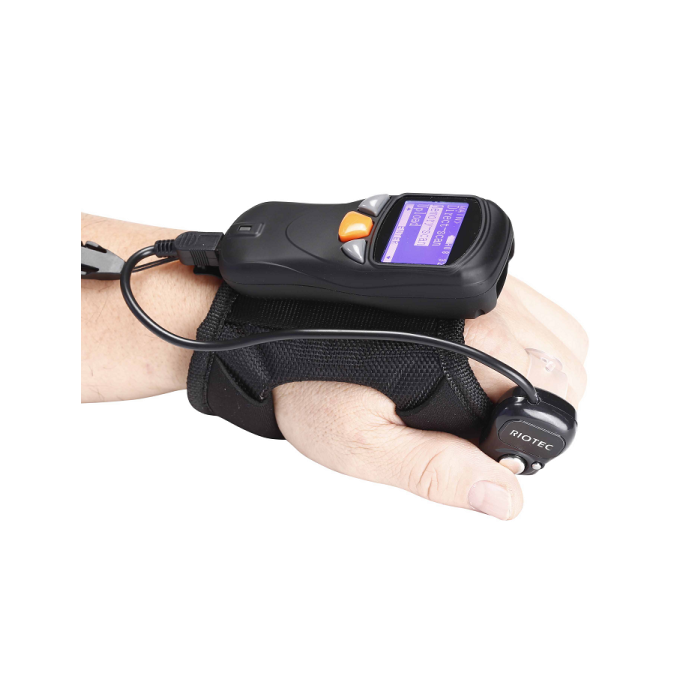

iDC9607LW 2D (RIOTEC 2D Engine) Pocket wearablescanner for Android / iOS device with holder & trigger switch
Different from others, we design the hand-free glove for pocket
barcode scanner use. You can use pocket scanner directly or
with hand-free glove.
Through Bluetooth, iDC9607LW can work with Android/iOS/
Windows device well.
In addition, we adopts Bluetooth Class 1 module and its transmission
distance can reach 100m in open area.
˙ Pocket-size design: 100 x 43 x 27mm
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch, its left button can raise & lower on-screen keyboard (press for 4 seconds)
˙ Charging: via USB cable

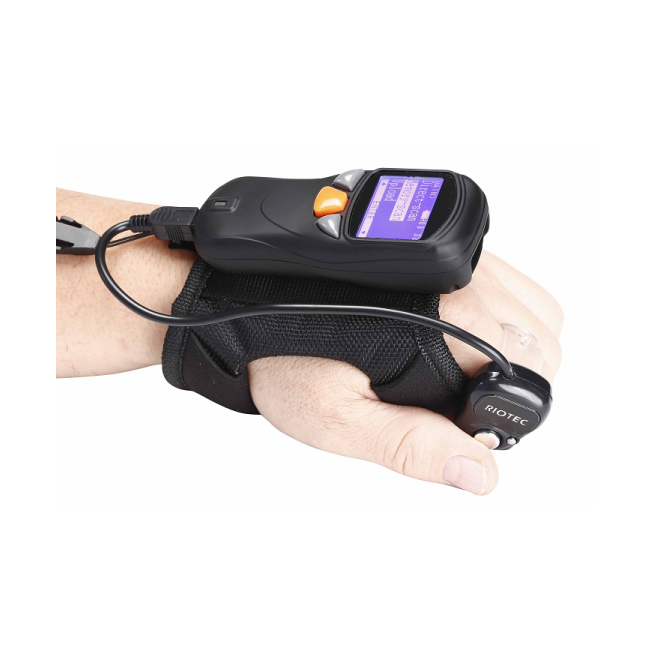

iDC9607LW 2D (RIOTEC 2D Engine) Pocket wearablescanner for Android / iOS device with holder & trigger switch
Different from others, we design the hand-free glove for pocket
barcode scanner use. You can use pocket scanner directly or
with hand-free glove.
Through Bluetooth, iDC9607LW can work with Android/iOS/
Windows device well.
In addition, we adopts Bluetooth Class 1 module and its transmission
distance can reach 100m in open area.
˙ Pocket-size design: 100 x 43 x 27mm
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch, its left button can raise & lower on-screen keyboard (press for 4 seconds)
˙ Charging: via USB cable
|
Scanner(Data Collector) Specifications： |
|||
|
Model Name |
|
iDC9607LW |
|
|
Description |
|
2.4 GHz Wireless Barcode Scanner |
|
|
Engine |
|
2D engine |
|
|
Performance Characteristics |
|||
|
˙ |
Light Source |
|
625±10 nm LED |
|
˙ |
LCD Panel |
|
Dots: 128 x 64 |
|
˙ |
Depth of Field |
|
(20 mil Code 39)：320 mm |
|
˙ |
Sensor |
|
CMOS (752×480 pixels) |
|
˙ |
Best Resolution |
|
1D (CODE39)≥ 5mil |
|
˙ |
Print Contrast |
|
≧30% |
|
˙ |
Reading angle |
|
Tilt: 360° / Pitch ±50° / Skew ±50° |
|
˙ |
Indicators |
|
green/red LED & beeper |
|
˙ |
Charge |
|
Mini USB port |
|
˙ |
Symbologies |
|
Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, |
|
˙ |
Interface |
|
through BT |
|
Electrical Characteristics ( There are +/- 1 cm tolerance ) |
|||
|
˙ |
Input voltage |
|
5 V/DC ± 5% |
|
˙ |
Current - operating |
350 mA |
|
|
˙ |
Radio Range |
|
BT Class 1 (100m, in open area) |
|
˙ |
RF Frequency |
|
2.4GHz |
|
˙ |
Communication |
|
HID profile, SPP profile |
|
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
|
˙ |
Scans per charge |
|
more than 10,000 scans when fully charged |
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
˙ |
Current Charging |
|
500 mA Max. |
|
˙ |
Power cable |
Mini USB cable |
|
|
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
|
Physical Characteristics |
|||
|
˙ |
Dimension |
|
Scanner 100 X 43 X 27 mm (L * W * H) |
|
˙ |
Weight |
|
Scanner 72 g +/- 5 g, Glove + Holder + Ring Trigger Cable 56g +/- 2g |
|
User Environment |
|||
|
˙ |
Temperature-operation |
|
0°C to 50°C |
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
˙ |
Humidity-operation |
|
5% to 95% relative humidity, non-condensing |
|
Decode Zone |
|||
|
˙ |
5 mil Code 39 |
|
60mm ~ 120mm |
|
˙ |
13 mil UPC-A |
|
45mm ~ 250mm |
|
˙ |
20mil Code 39 |
|
70mm ~ 320mm |
|
˙ |
6 mil PDF417 |
|
40mm ~ 160mm |
|
˙ |
10 mil Data Matrix |
|
40mm ~ 160mm |
|
˙ |
10 mil QR Code |
40mm ~ 275mm |
|
| Products Model | iDC9607LW 2D (RIOTEC 2D Engine) Pocket wearable scanner |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Riotec |
