Gerneralscan R1520 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner FE260S/ 600mAh Battery *1
£142.80
£119.00
In stock
SKU
R1521-R03+GMR201-01
Gerneralscan R1520 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner FE260S/ 600mAh Battery *1
Gerneralscan R1520 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner FE260S/ 600mAh Battery *1
R152X Thumbutton Scanner Series
Quick and Easy and Comfort for Prolonged to Use

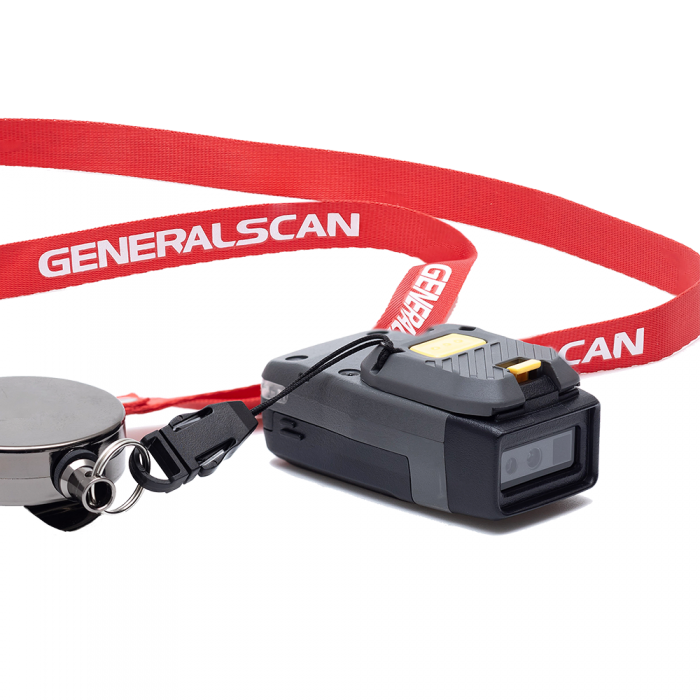

Users can quickly lift the scanner from the lanyard, scan items, and then let it drop back into a resting position with minimal effort, streamlining the scanning process.Lanyards was designed with comfort in mind, often featuring adjustable lengths and soft materials, making them suitable for prolonged use without causing neck strain or discomfort.
Dedicated design with efficient power management to provide extended working hours to 23.6 hours
Incorporate features like low-energy Bluetooth technology, optimized power consumption, and 600maH long-lasting batteries. This ensures prolonged usage between charges, making scanner suitable for demanding environments where continuous scanning is required throughout the day.
Incorporate features like low-energy Bluetooth technology, optimized power consumption, and 600maH long-lasting batteries. This ensures prolonged usage between charges, making scanner suitable for demanding environments where continuous scanning is required throughout the day.
Compact and Portable Design and Ease of Pairing and Integration
Small and lightweight, making Generalscan Thumbutton scanner easy to carry around and use for extended periods without causing fatigue. Easily pair with other devices, such as smartphones, tablets, or computers, using Bluetooth and it make simply to seamlessly integrate with various point-of-sale systems and inventory management software.
Small and lightweight, making Generalscan Thumbutton scanner easy to carry around and use for extended periods without causing fatigue. Easily pair with other devices, such as smartphones, tablets, or computers, using Bluetooth and it make simply to seamlessly integrate with various point-of-sale systems and inventory management software.
Easy Accessibility and Hands-Free Convenience
Wearing the scanner on a lanyard around the neck ensures that it is always within easy reach. This is especially beneficial for tasks that require frequent but not constant scanning, such as in retail or event management.When not in use, the scanner hangs securely around the neck, leaving the user’s hands free to perform other tasks
Wearing the scanner on a lanyard around the neck ensures that it is always within easy reach. This is especially beneficial for tasks that require frequent but not constant scanning, such as in retail or event management.When not in use, the scanner hangs securely around the neck, leaving the user’s hands free to perform other tasks
Specifications for R152X Thumbutton Scanner Series
|
|
R1521 Thumbutton Barcode scanner |
R1522 Thumbutton Barcode Scanner |
|
Dimension |
66.54mm(L)×34.73mm(W)×25.16mm(D) |
66.54mm(L)×34.73mm(W)×25.16mm(D) |
|
Battery Capacity |
600mAh |
600mAh |
|
Weight |
25.8g(Scanner body) |
28.3g(Scanner body) |
|
Engine |
GS GEA 101 |
Honeywell N4680 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±55° from normal Pitch tolerance: ±55° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±50° from normal Pitch tolerance: ±50° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal:±43°；Vertical:±32° |
Horizontal:±20°；Vertical:±15° |
|
Charging Time |
120min |
120min |
|
Battery Life |
18h(scan every 5 seconds) |
12.8h(scan every 5 seconds) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
13mil EAN-13 50-325mm 5mil Code39 55-135mm 13mil Code128 50-330mm 15mil QR 30-190mm 10mil Data Matrix 40-130mm 6.67mil PDF417 50-135mm |
5mil Code39 45-180mm 10mil Code39 36-360mm 20mil Code39 71-747mm 5mil Code128 56-158mm 10mil Code128 33-321mm 20mil Code128 53-598mm 100% UPCA 46-390mm 7mil PDF417 55-163mm 10mil PDF417 42-247mm 20mil PDF417 81-490mm 7mil QR 70-125mm 10mil QR/Data Matrix 40-182mm 20mil QR 36-367mm |
| Products Model | Gerneralscan R1520 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner FE260S/ 600mAh Battery *1 |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Generalscan |
