Generalscan GS WG100BT-HP Bluetooth 1D Laser Wearable Glove Barcode Scanner

Generalscan GS WG100BT-HP Bluetooth 1D Laser Wearable Glove Barcode Scanner

GS WG100-HP

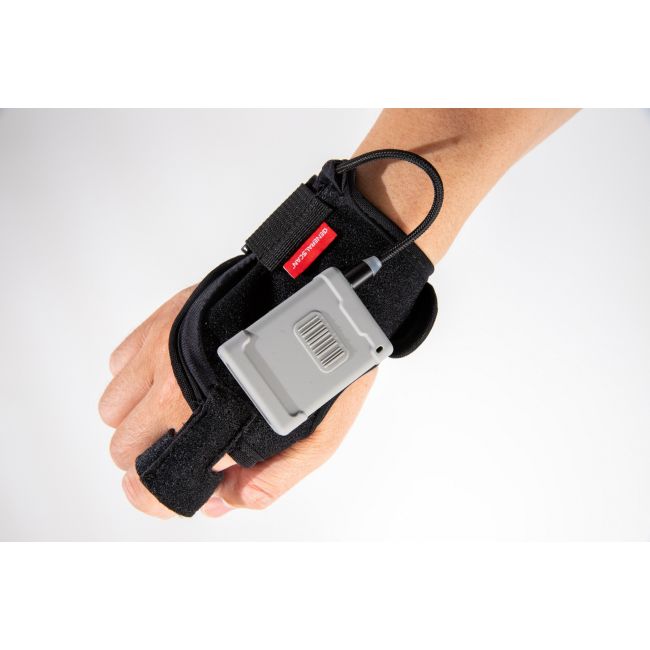

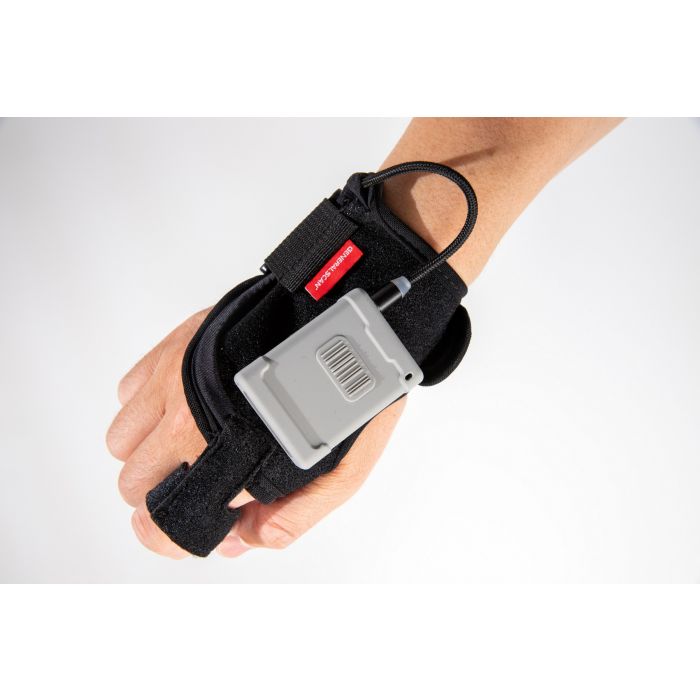

Wearable Bluetooth Laser 1D Barcode Scanner Glove

GS WG100 is suitable for other applications such as warehouse, express delivery and manufacturing. It is a hands-free, compact and light-weight Bluetooth 4.0 wireless communication technology that does not affect operation, making it an excellent product for improving productivity.

GS WG100 is compatible with operating systems such as IOS, Android and Windows. With the Generalscan Bluetooth adapter GS D100BT-Plus, it has been connected to the computer to achieve a wider range of data transmission. By connecting different accessories, it can be converted into a handheld or hands-free format to meet different work requirements. It is an ideal solution for retail, warehouse, asset tracking, express logistics and other applications.

We can provide you with the free iCloudscan app, which can share your barcode data anytime, anywhere.

Features:
● Hands-free barcode scanning.
● Lightweight wearable device, Adjustable wrist strap.
● Easy setup & configure.
● Dual-mode Bluetooth 4.0 communication.
● iOS & Android & Windows Compatible.
● Real time and Batch mode support.
● Long battery life.
● Decoding speed and large range.

PHYSICAL CHARACTERISTICS:
Dimensions 310 mm(L) × 155 mm(W), 12.2 in.(L) × 6.1 in.(W)
Weight 69g/2.43oz., 37 g / 1.30 oz. (without scanner)
Material Nylon Lycra, TPU, Polyester
Battery Capacity 500 mAh
Interface Magnetic micro-USB
Charging 5W(5V / 1A )
Charge Time 2.2 hours
Battery Life 8.4 hours ( scan 1 time per 5 seconds )
Notification LED, Beeper



PERFORMANCE CHARACTERISTICS:
Optical Resolution Minimum unit 5mil
Sensor Laser Diode
Skew,Pitch & Roll Skew±30° , Pitch±65° , Roll±25°:
Field of View 53°, Vertical: 0.4°Horizontal
Illumination 1 Hyper Red 660nm LED
Scan rate104 times/second (bidirectional)
Ambient Light 86, 111 lux
Supported Symbologies UPC-A, UPC-E, UPC-E1, EAN/JAN-8, EAN/J- AN-13, Bookland EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Korean 3 of 5, Codabar, MSI, GS1 DataBar
Interface USB, Bluetooth
Offline Mode Support storage 5000 EAN-13 barcodes


BLUETOOTH:
Bluetooth Profiles Classic Bluetooth( BR / EDR):
HID Keyboard and SPP
Bluetooth low energy(BLE):BLE GATT
Bluetooth Range Connect to terminal above 65.6ft./20m, Connect to D100BT-PLUS Dongle above 131ft./40m(without obstructions)
Bluetooth OTA Bluetooth SPP OTA


USB:
USB Interface Micro USB 2.0
USB Profiles HID Keyboard and Virtual com port USB HID mode supports
Multilingual Keyboard multilingual keyboards

ENVIROMENT CHARACTERISTICS:
Operating Temperature 5°F to + 131°F / -15°C to 55°C
Storage Temperature -22°F to +149°F / -30°C to +65°C 5% to 95%
Humidity non-condensing
Drop Rating In protective case, multiple 5.9 ft./ 1.8 m drops to concrete over the operating temperature range
Certification CE , FCC , RoHS

DECODE RANGES
Symbology                                Range
5.0 mil Code128                                  35.5~177.8mm (1.4 ~ 7.0 in.)
7.5 mil Code39                                    30.4~419.1mm (1.2 ~16.5 in.)
10 mil Code128                                   30.5~404.6mm (1.2 ~ 16.0 in.)
13 mil 100%UPC                                  45.7~635.0mm (1.8 ~ 25.0 in.)
15 mil Code128                                   50.8~660.4mm (2.0 ~ 26.0 in.)
20 mil Code39                                     35.6~1168.4mm (1.4 ~ 46.0 in.)
