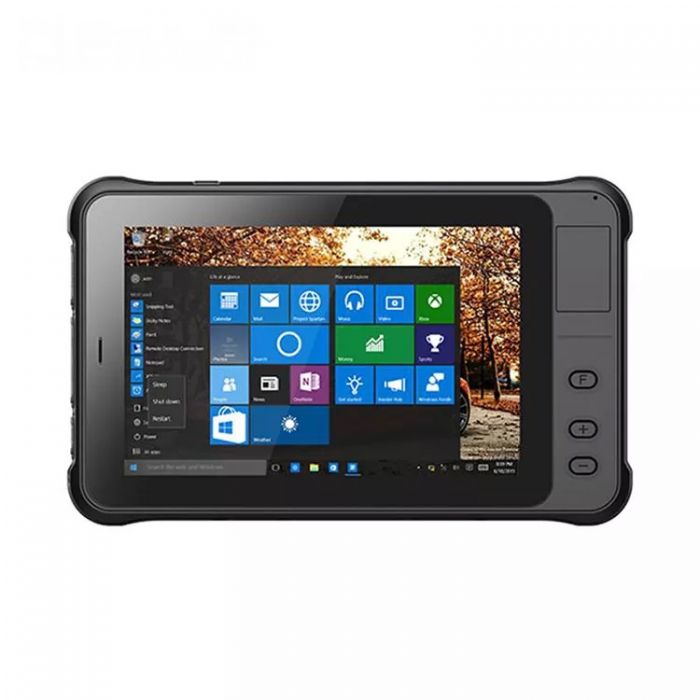

Emdoor EM-I75H 7" screen 4G/WiFi, Windows 10, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC
Emdoor EM-I75H 7" screen 4G/WiFi, Windows 10, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC
|
Dimension
|
217 x 134 x 21.4mm
|
|
Weight
|
device unit 680g
|
|
Device Color
|
black
|
|
LCD
|
7 inch IPS 16:10, 800x1280, 1000nits
|
|
Touch Panel
|
5 point G+G capacitive touch screen Corning@ Gorilla@ Glass
|
|
Camera
|
Front 2.0MP Rear 5.0MP
|
|
1/0
|
HDMI 1.4a x 1,
|
|
Micro USB 2.0 x 1,
|
|
|
SIMCardx1,TFCardx1,
|
|
|
12pins Pogo Pin x 1,
|
|
|
Φ3.5mm standard earphone jack X 1,
|
|
|
Φ3.5mm DC jack x 1
|
|
|
Power
|
AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
|
|
CPU
|
Intel Atom x5 Z8350
|
|
OS
|
Windows 10
|
|
RAM
|
4GB
|
|
ROM
|
64GB
|
|
Capacity
|
3.7V/ 7500mAh
|
|
Type
|
Built in polymer lithium ion battery
|
|
Endurance
|
6hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )
|
|
WIFI
|
WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)
|
|
3G/4G (Optional)
|
LTE FDD: B1/B3/B5/B7/B8/B20
|
|
LTE TDD: B38/B40/B41
|
|
|
WCDMA: B1/B5/B8
|
|
|
GSM: B3/B8
|
|
|
GNSS
|
Built-in Glonass, Beidou, GPS
|
|
Operate Temperature
|
-20°C~60°C
|
|
Store Temperature
|
-30 °C~ 70 °C
|
|
Humidity
|
95% Non-Condensing
|
|
Rugged Feature
|
IP65 certifhed, MIL - STD- -810G certifhed
|
|
Drop Height
|
1.22m
|
|
NFC
|
Optional, 13.56MHz, ISO/IEC 14443A/B,ISO/IEC 1 5693, ISO/IEC 18092
|
|
1D
|
Optional, N4313
|
|
2D
|
Optional, EM80
|
|
UHF
|
Optional, M-550 UHF RFID
|
|
ID
|
Optional reading the fingerprint information in the 1st and 2nd ID card
|
|
Fingerprint
|
Optional, Fingerprint collection module for ID card
|
| Products Model | Emdoor EM-I75H 7" screen 4G/WiFi, Windows 10, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC |
|---|---|
| Operating system | Windows |
| Screen size | 7 inch |
| Manufacturer | Emdoor |
