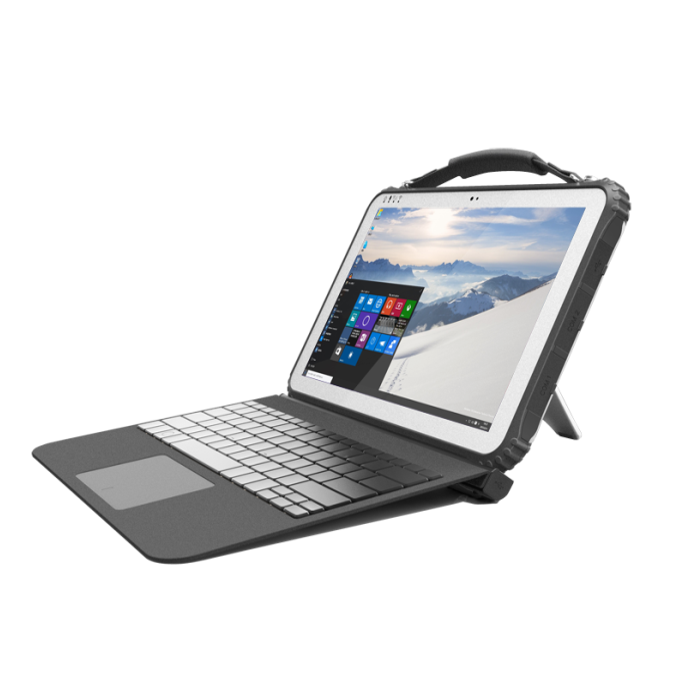

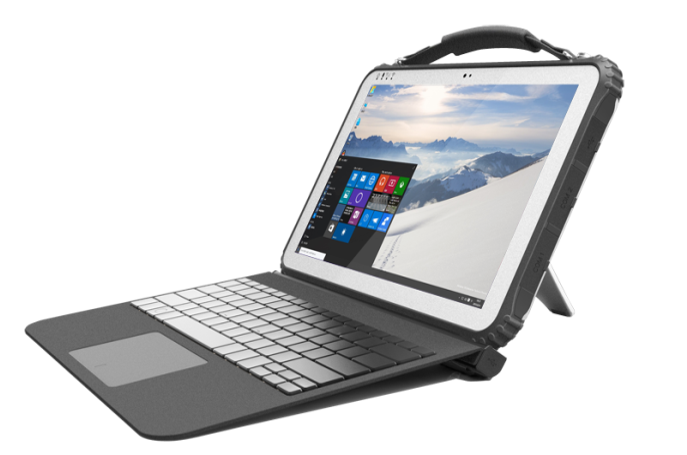

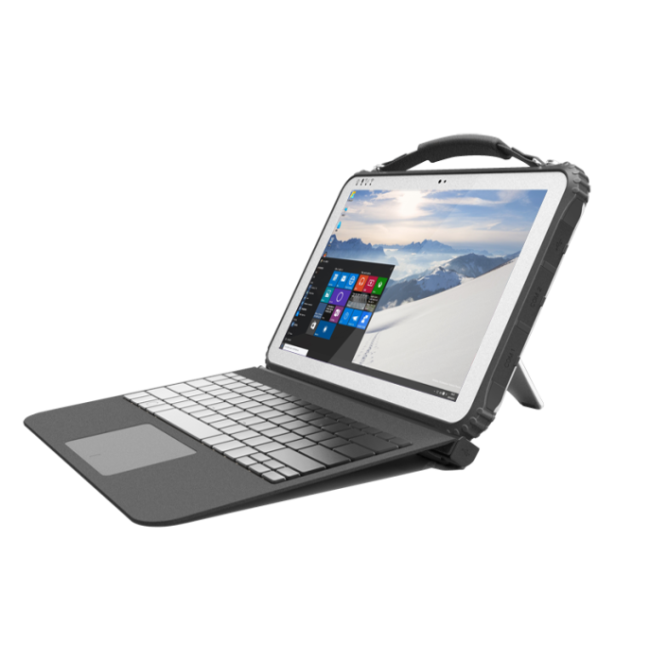

Emdoor EM-I22H 12" Intel 2in1 Rugged Notebook

Emdoor EM-I22H 12" Intel 2in1 Rugged Notebook

Functions:

• Support for Windows 10 system
• Optional 3G/4G all network communication, WiFi, Bluetooth and other communication modes
• 12600mAh battery, 6-8 hours of machine endurance
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, more accurate positioning
• Support 1920x1200 FHD high score screen, optional with Corning gorilla TP and sunshine visual screen
• Support 1D/2D, NFC and other functional modules for free selection

Basic Parameters:

Dimension: 319.6 x 216 x 24.3mm

Weight Device: 1500g

Color: Black

LCD: 12.2 inch IPS 16:10, 1920x1200, 280nits

Touch Panel: 10 point G+G capacitive touch screen Corning® Gorilla® Glass

Camera: Front 2.0MP Rear 5.0MP

I/O: USB 2.0 Type-A x 2, USB 3.0 Type-A x 1, Micro USB x 1, SIM Card x 1, TF Card x 1, HDMI 1.4a x 1, 12pins Pogo Pin x 1, RS232 x 1, RS232/485 x 1, RJ45 (10/100M) x 1, Φ3.5mm standard earphone jack x 1, Φ3.5mm DC jack x 1

Power: AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A

Communication:

WIFI: WiFi 802.11 a/b/g/n/ac (2.4G+5.8G)

Bluetooth: BT4.2

3G/4G (Optional): LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8

GNSS: Built-in GPS

Performance Parameter:

CPU: Intel Atom x5 Z8350

OS: Windows 10

RAM: 4GB

ROM: 128GB/64GB

Battery:

Capacity: 3.7V/12600mAh

Type: Li_polyment, removeable battery

Endurance: 8hrs(default 50% volumn，default 200 lumens brightness，play 1080P HD video)

Reliability

Operate Temperature: -20 °C ~ 60 °C

Store Temperature: -30 °C ~ 70 °C

Humidity: 95% Non-Condensing

Rugged Feature: IP65 certified, MIL-STD-810G certified

Drop Height: 1.22m

Data Collection:

NFC: Optional, 13.56MHz, ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092

1D: Optional, MOTO SE655E100R

2D: Optional, EM80
