Effon HS02 2D Bluetooth Wireless Handheld Barcode Scanner
£138.00
£115.00
In stock
SKU
HS02
HS02 2D Wireless Bluetooth Handheld Barcode Scanner, built-in 1000mah lithium battery in full power whose standby time can last for 15 days and not only work continuously for to 10 hours.
Type: Wireless Bluetooth Handheld 2D Barcode Scanner
Barcodes:1D/2D
Battery: 2000mAh Rechargeable Battery
Offline Mode: yes
Charging Cable: yes
Compatible: Android/IOS/Windows
Effon HS02 2D Bluetooth Wireless Handheld Barcode Scanner
HS02 Wireless Bluetooth Handheld 2D Barcode Scanner, built-in 1000mah lithium battery in full power whose standby time can last for 15 days and not only work continuously for to 10 hours.
Type: Wireless Bluetooth Handheld 2D Barcode Scanner
Barcodes:1D/2D
Battery: 2000mAh Rechargeable Battery
Offline Mode: yes
Charging Cable: yes
Compatible: Android/IOS/Windows
HS02 Handheld scanner designed independently by Effon, aimed at offering convenience to supermarkets, clothing store and store cash register. It's simple to use and support wireless Bluetooth and serial port connection as two optional modes. Its built-in high-speed QR code barcode scanning engine can scan 1d & 2d barcodes Built-in 1000mah lithium battery in full power whose standby time can last for15 days and not only work continuously for to 10 hours. Not connecting with any devices, it also can store 6000 barcodes of 15 bytes
Cell phone jacket holder suit for 4-7'''s a cell phone, transferring and checking data
Features:
Scan Performance
Using the Zebra scan engine for almost all 1d/2d barcodes. Including broken barcodes
Long Distance Scanning
Up to 2.5 meters long scan distance (depending on the size of the barcode)

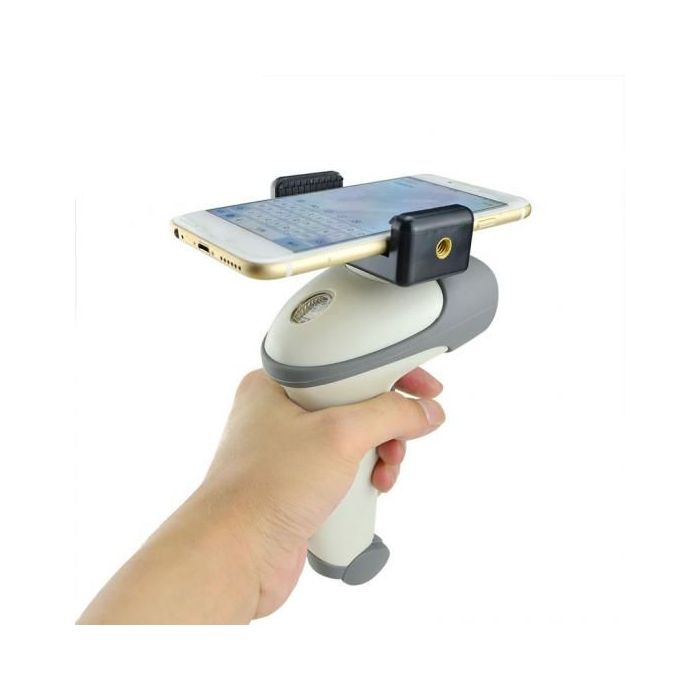

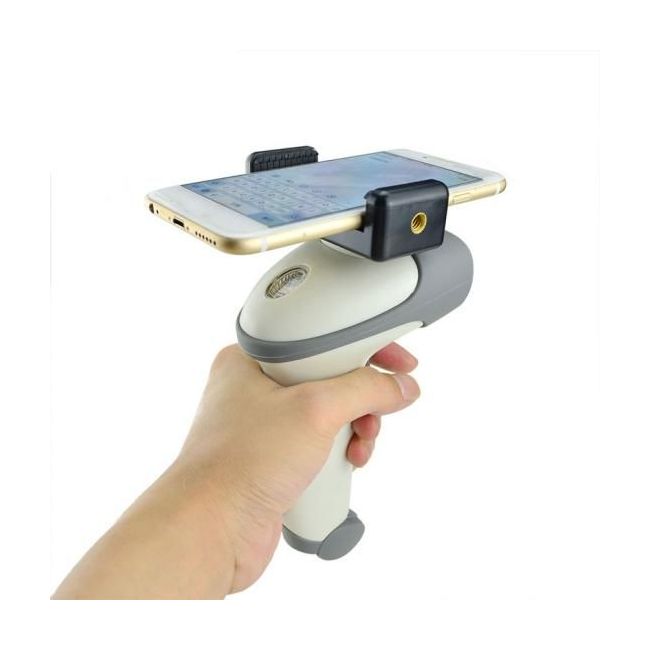

Come with Mobile holder
Hold your smartphone on the scanner, make your scanning on real-time
Ultra-large capacity battery
Built-in 2000mAh Rechargeable battery. After a full charge can support more than 15 hours working
Offline Mode
Offline scan barcodes and can save it as CSV/TXT
Compatible
Android/IOS/Windows
Specifications:
|
Product name |
HS02 Wireless 2D Barcode Scanner |
||||||||||||||
|
Model name |
HS02 |
||||||||||||||
|
Dimensions |
Length:168mm, Width: 68mm, Height:80mm |
||||||||||||||
|
Weight |
150 grams |
||||||||||||||
|
Electrical |
Power: DC5V Typical: 300mA DC5V |
||||||||||||||
|
CPU |
32bit ARM CPU |
||||||||||||||
|
Data storage |
100KB for offline mode: 6000 15 bytes barcodes (Other flash is optional). |
||||||||||||||
|
Working mode |
Bluetooth mode, offline mode and RS232 mode(optional) |
||||||||||||||
|
Scan mode |
Manual mode, Continuous, Host, Sense mode |
||||||||||||||
|
Ambient illumination |
0～107,639 lux |
||||||||||||||
|
Scanner performance |
Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED 660nm red LED Scanner Angle: ±60°, ±60°, ±360° (skew, pitch, Roll) Field of view: Horizontal: 42°, Vertical: 28° Contrast: ≥20% |
||||||||||||||
|
Battery power |
Internal Battery: Rechargeable 2000mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
Charge time: About 2 hours |
||||||||||||||
|
Barcode Type |
1D |
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes |
|||||||||||||
|
|
2D |
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
|||||||||||||
|
Decoding depth & |
Code 39 |
51mm -162mm (5mil); |
|||||||||||||
| Products Model | Effon HS02 2D Bluetooth Wireless Handheld Barcode Scanner |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Pistol grip |
| Manufacturer | Effon |
