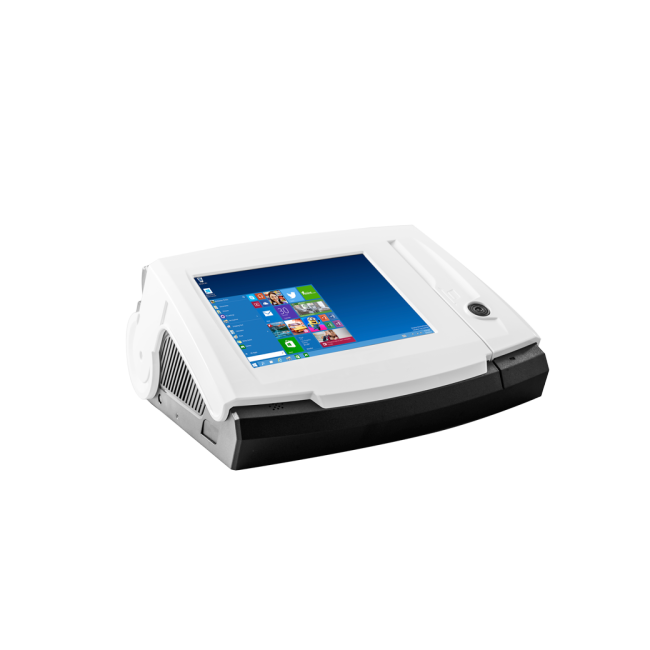

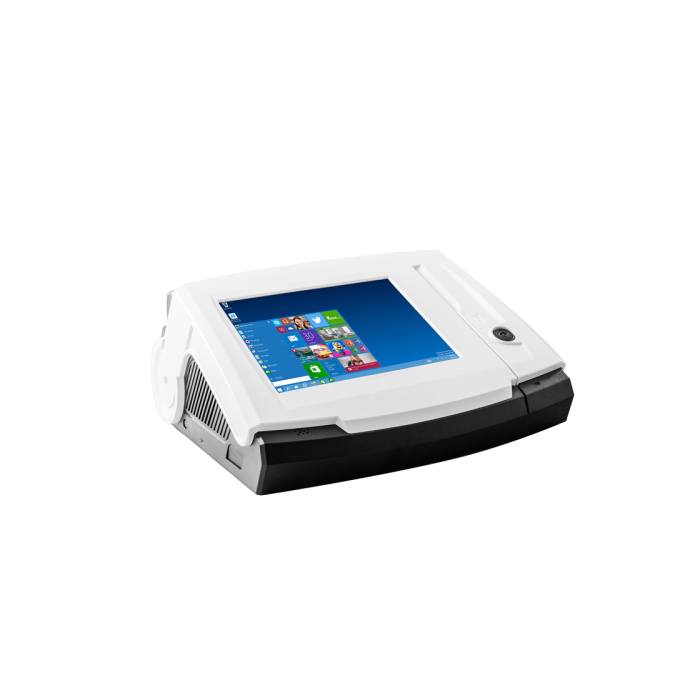

Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal
£690.00
£575.00
In stock
SKU
DYNAMICPOS97WIN
Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal
Dynamic POS 9.7″
Feature
- 15″ 5wire resistive touch screen technology
- Flexible installation with expandability
- Cost effective solution
- Versatile combination with build in Printer / VFD / MSR / i-Button / RFID / WiFi function
Models Features
- LCD LED Backlight
- Magnetic Stripe Card Readers
- VFD Customer Display
- Thermal Printer
- Barcode Scanner
- 2nd LCD Display
Peripheral Options
- Magnetic Stripe Card Readers
- VFD Customer Display
- 2nd LCD Display
- Electronic Scales
- Barcode Scanner
Color Choice
 |
 |
| White | DarkGray |
Description:
 |
Seiko SII Thermal Printing Mechanism |
 |
MSR and Ibutton |
| Flat Touch Screen |  |
Dual LCD Monitors |  |
 |
High Brightness VFD Display |
 |
5 Wire Resistive Touch |
 |
Build in 80mm Thermal Printer |
 |
Specifications:
B960 / Ivy Bridge / i7 / i5 / i3 / J1900
D525
| System | |
| CPU Support | Intel® Atom™ Dual Core D525 1.8Ghz CPU Intel® Pentium® Processor B960 Intel® Ivy Bridge Intel® Core™ i7 / i5 / i3 / Dual Cores CPU Intel® Celeron®Processor Bay-Trail J1900 ( 2M Cache , up to 2.42GHz) |
| Memory | Support up to 4GB DDR3 / 8G DDR3 |
| Core Logic | Intel NM10 / HM76 / BayTrail |
| Net Work | Network 10/100/1000 Base-T Fast Ethernet |
| Power Supply | 24V Power Adaptor (D525 ) / 12V Power Adaptor (B960/ Ivy Bridge / i7 / i5 / i3 / J1900 ) |
| Color | Dark Grey / White |
| System weight | 4.5 kgs |
| Dimension (WxHxD) mm | 358 x 167.5 x 345 mm |
| O/S | Windows XP / XPE , WEPOS , POS Ready 2009 , Windows 7 (Windows 8 , Windows 10 Ivy Bridge and Baytrail platform only) |
| Storage | |
| HDD | 1 x 2.5″ SATA HDD |
| SSD | SSD SATA Interface Max.1TB |
| eMMC | N/A |
| Micro SD | N/A |
| I/O Ports | |
| Serial Ports | 3 x external COM ( w/ +5V, +12V selectable ) |
| USB Ports | 5 x external USB Ports |
| mPCIe | 1 x internal |
| Ethernet | 1 x 10/100/1000 Mbps (RJ45) |
| PS/2 | 1 x PS / 2 Keyboard / Mouse port |
| VGA | 1 x DB-15 VGA Interface |
| Parallel Port | 1 x DB25 |
| Audio | 1 x 2W speaker (Optional) |
| Cash Drawer | 1 x RJ11 |
| DC-IN | 24V DC-IN(D525); 12V DC-IN(J1900. Core i3, i5, i7) |
| Power Switch | 1 x Power Switch |
| Display | |
| LCD | 9.7″ TFT LCD Panel |
| Max. Resolutiion | 1024 x 768 |
| Brightness | 350 nits |
| Touch Screen | 5 wires resistive touch panel |
| HDMI | N/A |
| Environmental | |
| Operating Condition | 0°C ~ 40°C, 20%RH ~ 90%RH |
| Storage Condition | -20°C ~ 60°C, 10%RH ~ 90%RH |
| Peripheral Options | |
| Printer | 80mm easy loading thermal printer with auto cutter Printing Speed: 200mm / sec.RS232 (default) / Epson Commands Compatible |
| Customer Display | VFD Type, 20 columns x 2 lines, each column 5×7 dotsRS232 (Default) Multi-language / Epson Commands |
| MSR | ISO Track 1/2/3 USB (default), JIS-I or II |
| i-button | Read only, USB interface |
| Wireless LAN | Mini PCIe Wireless LAN Module 802.11 b/g/n |
| RFID | ISO 14443A, UrtraLight,Mifare@PRO, DESfire |
| Fingerprint | Yes |
| Scanner | External |
| Safety standards | CCC / CE / FCC |
| Products Model | Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal |
|---|---|
| Operating system | Windows |
| Screen size | 9.7 inch |
| Manufacturer | PosLab |
