Description:
|
Seiko SII Thermal Printing Mechanism |
|
MSR and Ibutton |
| Flat Touch Screen | |
Dual LCD Monitors | |
|
High Brightness VFD Display |
|
5 Wire Resistive Touch |
|
Build in 80mm Thermal Printer |
|
Specifications:
| System | |
| CPU Support | Freescale i.MX6 U / Q ARM Cortex-A9 Dual/Quad CPU Core 1000MHz |
| Memory | 1Gb /2Gb DDR3 |
| Core Logic | Freescale i.MX6 U/Q |
| Net Work | 10M/100M/1000M Base-T Fast Ethernet |
| Power Supply | 24V Power Adaptor |
| Color | Dark Grey / White |
| System weight | 7 kgs |
| Dimension (WxHxD) mm | 380 x 205 x 393.5 mm |
| O/S | Android 4.2.2 Jelly Bean / Ubuntu Linux |
| Storage | |
| HDD | N/A |
| SSD | N/A |
| eMMC | 8G/16G/32G (Standard 8G) |
| Micro SD | 1xMicroSD slot |
| I/O Ports | |
| Serial Ports | 3 x external COM ( w/ +5V, +12V selectable ) |
| USB Ports | 4 x external USB Ports |
| mPCIe | 1 x internal |
| Ethernet | 1 x 10/100/1000 Mbps (RJ45) |
| PS/2 | N/A |
| VGA | N/A |
| Parallel Port | N/A |
| Audio | 1 x 2W speaker |
| Cash Drawer | 1 x RJ11 |
| DC-IN | 24V DC-IN |
| Power Switch | 1 x Power Switch |
| Display | |
| LCD | 15″ TFT LCD Panel |
| Max. Resolutiion | 1024 x 768 |
| Brightness | 250 nits |
| Touch Screen | 5 wire resistive touch panel |
| HDMI | N/A |
| Environmental | |
| Operating Condition | 0°C ~ 40°C, 20%RH ~ 90%RH |
| Storage Condition | -20°C ~ 60°C, 10%RH ~ 90%RH |
| Peripheral Options | |
| Printer | 80mm easy loading thermal printer with auto cutterPrinting Speed: 200mm/sec.RS232(default)/Epson Commands Compatible |
| Customer Display | VFD Type, 20 columns x 2 lines, each column 5×7 dotsRS232 (Default) Multi-language / Epson Commands |
| MSR | ISO Track 1/2/3 USB (default), JIS-I or II |
| i-button | Read only, COM interface |
| Wireless LAN | 802.11a/b/g/n dual band MIMO |
| RFID | ISO 14443A, UrtraLight,Mifare@PRO, DESfire |
| Fingerprint | External |
| Scanner | External |
| Safety standards | CCC / CE / FCC |

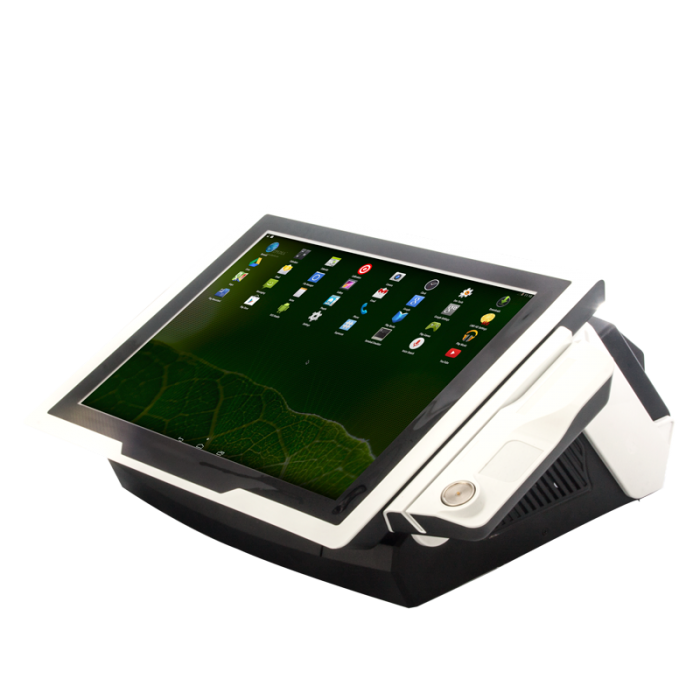

| Products Model | Dynamic POS 15" Freescale Cortex A9 1GHz Duo core, 1GB Android All-in-one POS Terminal |
|---|---|
| Barcode scanner | 1D scanner |
| Operating system | Android |
| Screen size | 15 inch |
| Manufacturer | PosLab |
