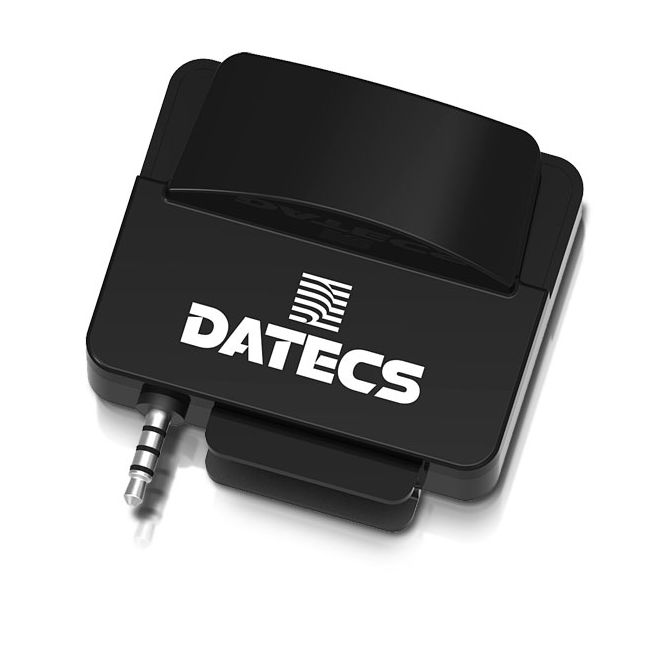

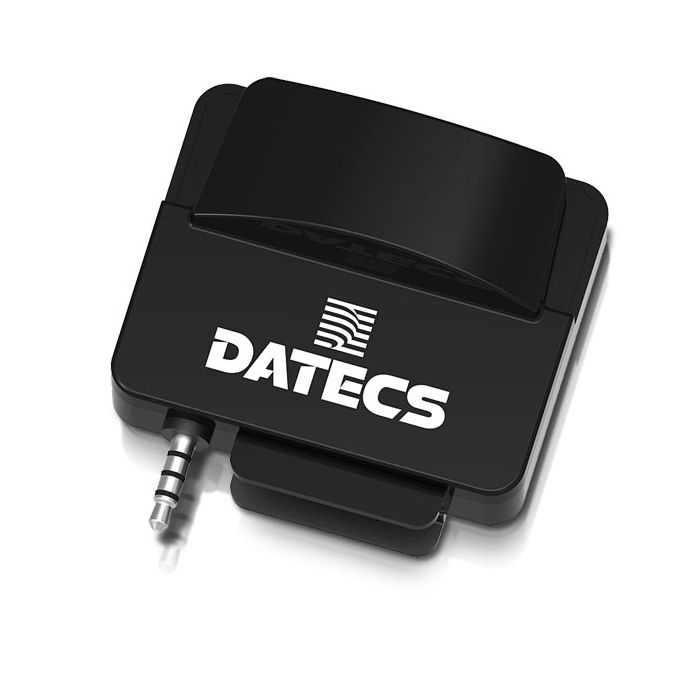

DRD-10 audio jack smart card reader

Small, convenient and mobile

The DRD-10 is a smart card reader for all Apple mobile devices - iPhone ®, iPod ® and iPad ® (iOS) and all Android TM OS mobile devices.

With the DRD-10, merchants can accept payment and loyalty card payments wherever they are.

Functions:

• Battery: Up to 25 000 readings
• Power Supply: Charge from Micro USB
• Operation Modes: Active (Power On) / Power Off
  (after 2 sec idle)
• Reliability: Allowing 200 000 card enters

Applications
• Payment
• Loyalty Card

Secure Encrypting Engine
• AES-128 encryption algorithm
• RSA-2048 encryption algorithm

Certifications
• EMV Level 1
• EMV Level 2

Technical Specifications:

Power Consumption
• Active: approximately: 12mA
• Active with Reading: range: 30 to 130mA

MCU
• STM32L151 Microprocessor
• Up to 16KB RAM
• Up to 128KB Flash
• Operating standard ISO/IEC 7816

• Memory: Up to 512k I2C EEPROM memory (for Audio
  SCR settings)
• I/O Connector: 3.5 mm TRRS Jack
• Communications: Datecs proprietary audio protocol
  interface between iOS or Android devices
• Datecs Audio Interface: Speed: 2000 bps, Datecs
  Proprietary Protocol

Environment
• Operating: 0°C to +40°C / 35 to 85% RH
• Storage: -5°C to +40°C / 10 to 90% RH

Accessories / Options:

SDK Software Support
• iOS
• Android OS

Size/Weight/Power:

• W x L x H - 60 x 48 x 11 mm (2.4 x 1.9 x 0.4 inch)
• Weight - 40 gr.
• Power - 3.7V / 200 mAh Li-Po Battery
