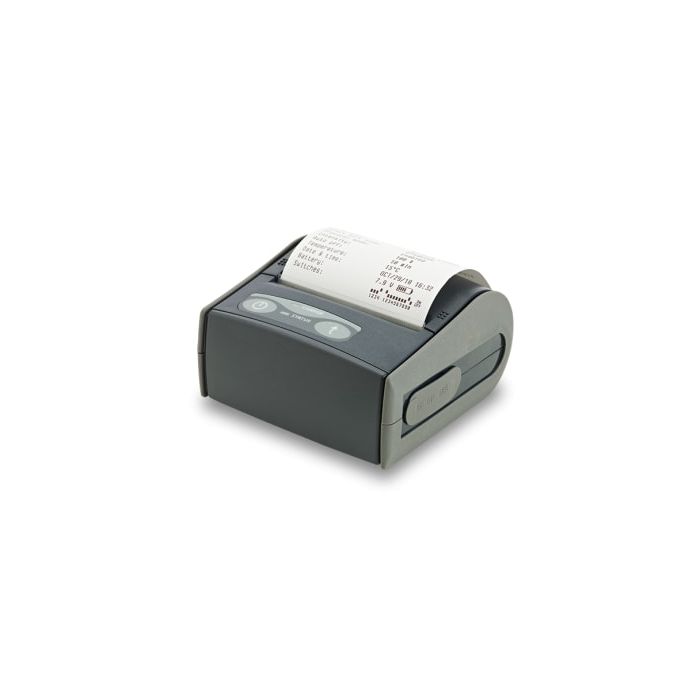

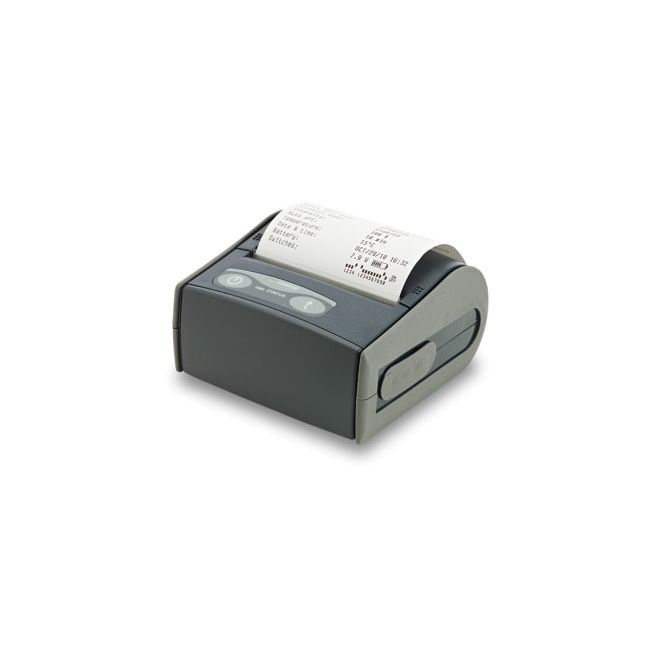

Datecs DPP-350 3" Rugged Printer + Bluetooth + Mag Stripe

Datecs DPP-350 3" Rugged Portable Thermal Printer with Bluetooth and Magnetic Stripe Reader

DATECS DPP-350 is a mobile ESC/POS thermal printer with 3-inch wide printing mechanism. It can be used in dynamic working conditions and its abundant built-in features allow it to be widely used for different applications.

DPP-350 can quickly and easily print text and/or graphics, depending on customer’s needs – barcodes, logo, etc.

The perfect portable thermal printer solution for barcoding, receipts and ticketing applications.

• Mobile Enterprise Mobility
• Retail
• Transportation
• Receipt Printer
• Point of sales
• Healthcare
• Warehousing
• Distribution

Options:

• Bluetooth (option)
• Wi-Fi (option)
• Magnetic Stripe Reader (option)
• Smart Card Reader (option)
• Mi FARE Reader (option)
• SD Card Slot for SD Card or Wi-Fi Modules (option)

Accessories

• Wearable built-in metal belt hook
• Neck / shoulder lanyard

• Emulation: ESC/POS
• Printer mechanism: FTP-638MCL103
• Printing Method: Thermal-line dot method
• Dot structure: 576 dots per line
• Dot pitch (Horizontal): 0.125 mm (8 dots/mm) - Dot density
• Dot pitch (Vertical): 0.125 mm (8 dots/mm) - Line feed pitch
• Effective printing area: max 72 mm
• Paper Feed System: step
• Printing Speed: Maximum 60mm/sec. (480 dot line/sec.) at 8.5 V

Head life

• Pulse resistance: 100 million pulses/dot (under our standard conditions).
• Abrasion resistance: paper traveling distance 50km (print ratio: 25% or less)

• Fonts Font А: 12 x 24 dots, 48 characters per line
• Font B: 9 x 16 dots, 64 characters per line
• Loadable Font C: 12 x 24 dots, 48 characters per line
• Loadable Font D: 9 x 16 dots, 64 characters per line
• Font E (JIS and Shift-JIS): 24 x 24 dots, 28 characters per line - Japanese version only
• Font F (GB2312): 24 x 24 dots, 28 characters per line - Chinese version only
• Logo Registration: 1 Black & White BMP format ( 1-bit per pixel); Size: 576 x 248
• Barcode printing: EAN 13, EAN 8, UPC-A, UPC-E, CODEBAR, CODE 39, CODE 128, PDF417, QR Code
• FLASH Memory: 1 Mega bit
• RAM Memory: 36 864 bytes (option 131 072 bytes)
• Interfaces: RS-232 interface, type RS-232C, max 115200 bps
• USB interface, type USB v 1.1, compatible with 2.0
• Bluetooth interface (optional)
• Cables RS-232 interface cable
• Mini USB А to mini USB B cable (option)

Configuration options

• Magnetic Card Reader - 3 track head, ISO7811 (optional)
• Smart Card Reader, ISO 7816-1/2/3 (optional)
• MIFARE Reader, ISO 14443-A (optional)
• SD card slot for SD card (optional)
• Battery capacity: Print 30 000 lines per charge

Operation switches

• Button LF Paper feed, Self-test, Dump mode
• Button ON/OFF- Switch On and Switch OFF

Recommended Paper

• Width, mm 80 or 58 / 60
• Diameter, mm 50
• Thickness, um 60 to 100 (some paper in this range may not be used because of paper characteristics)
• Safety standards and EMI "Drop" test – up to 110 cm and "Waterproof"
• Operating temperature: 0°C to + 50°C
• Operation humidity:
• 20 to 85% RH (no condensation)
• Storage temperature: -20°C to + 60°C
• Storage humidity: 5 to 95% RH (no condensation)

  Drivers for: Windows XP, Vista, 2000, 2003; Windows Mobile, Windows CE.Net; Palm OS; Windows; BlackBerry; Android
