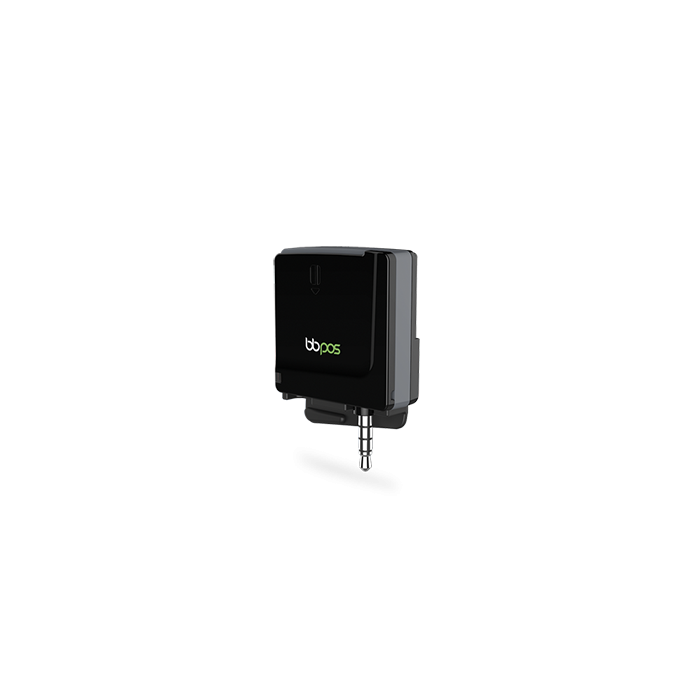

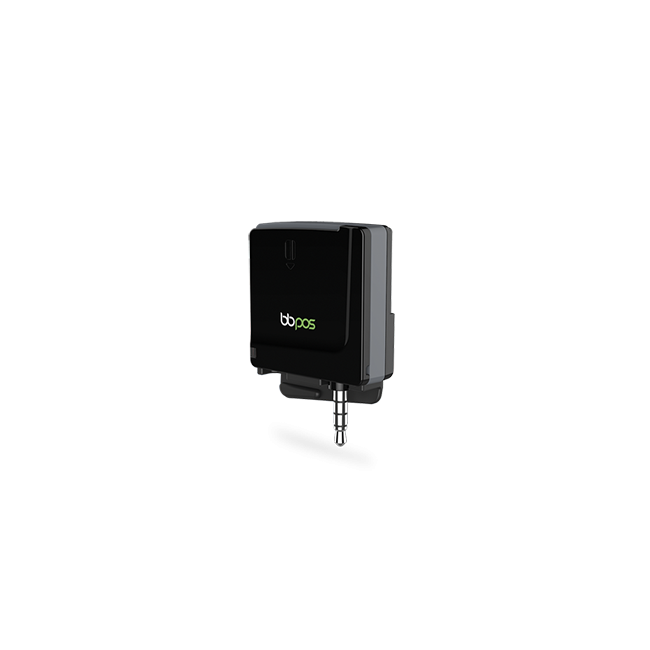

Chipper Mini 2 Ultra Compact Magstripe + EMV Card Reader

Chipper Mini 2 Ultra compact Magstripe and EMV card reader

Chipper™ Mini 2 – An ultra-compact device combining mobility, functionality, and performance. Suitable for any mobile payment application or industry, Chipper™ Mini 2 is your anytime, anywhere mobile payment solution.

Smart design transforms superior function into a comfortable, and easy user experience. Chipper™ Mini 2 supports magstripe and EMV, offers all the quality and superior performance you’ve come to expect from the Chipper family of mPOS solutions, and more – smaller, sleeker, secure and reliable – everything you need to make mobile payment a winning part of your business.

Widely Compatible

• Dual track magstripe,
• EMV card reader
• Chipper™ Mini 2 Specifications

Functions

• EMV chip card reader (ISO7816 compliant class A, B, C card)
• Magnetic stripe card reader dual tracks (track 1 & 2)
• Over-the-air firmware update
• Over-the-air key update

• Communication Interface:           3.5mm audio jack, Micro USB
• Buttons:                                     Reset button
• Detection:                                   Unplug detection
• Power & Battery:                         Lithium polymer rechargeable battery 125mAh, 3.7V
• Charging:                                    Via Micro USB
• Indicator:                                    LED status indicator

Light Indicator

• Green light on: Battery fully charged
• Green light flashing: During transaction
• Red light on: Battery charging
• Red light flashing: Operating at low battery

• Key Management:                 DUKPT, MK/SK
• Encryption Algorithm:           TDES
• Firmware Update:                 Supported by audio, over-the-air and USB, store in serial flash
• Swipe Speed:                        15cm – 100cm/sec

Battery Life:

Above 150 EMV transactions, or above 1500 magnetic card swipe transactions for one fully charge

Support Operation Systems

•
• Android 2.1 or above
• iOS 6.0 or above
• Windows Phone 8 or above
• Microsoft Windows

• Operating Temperature:                  0℃ – 45℃
• Operating Humidity:                       Maximum 95%
• Storage Temperature:                     -20℃ – 55℃
• Storage Humidity:                          Maximum 95%

 Certifications:

• EMV Contact L1 & L2
• VISA Ready
• MasterCard TQM
• MasterCard Mobile POS
• PBOC 3.0 L1 & L2
• FCC, CE, RoHS

Reliability:                                           ESD 4k / 8k

Dimensions & Weight
