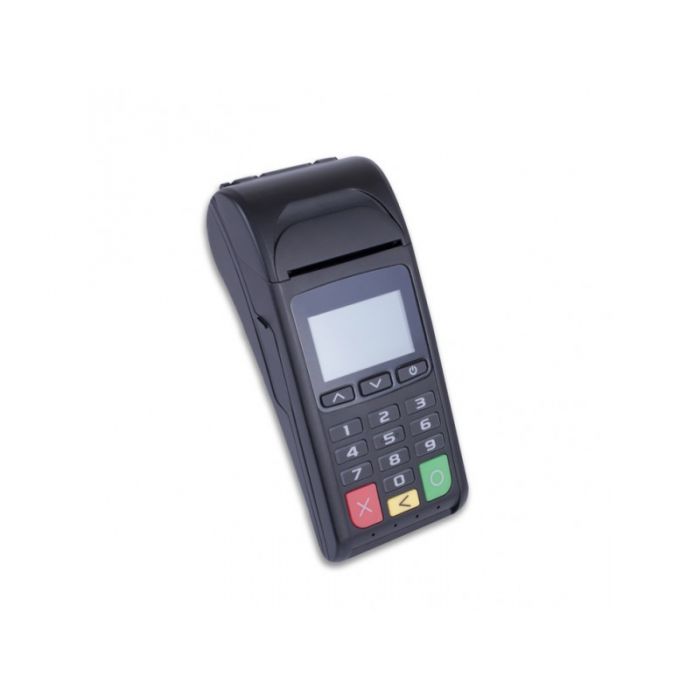

Bluepad 5000 + Bluetooth + WIFI + GPRS

BluePad-5000 is our desktop mobile payment terminal. It accepts all forms of payment: Magnetic stripe, EMV Chip&PIN and Contactless cards and includes a printer to seamlessly print your receipt.

The BluePad-5000 meets the latest EMV and PCI PTS 4.x specifications for encrypting PIN-entry devices.

Specifications
Printing Mechanism: Direct line thermal printer
Printing Width: 48 mm, 384 dots per line
Printing Resolution: 8 x 8 dots/mm (203 dpi x 203 dpi)
Printing Speed: Max 100 mm/sec
Paper Width: 58 mm
Roll Max Diameter: 40 mm
Paper Loading: Easy paper loading
Operator Display: 128 x 64 Monochrome LCD, backlight
Color: LCD, 220 x 176 (optional)

Keyboard and Buttons:
ON / OFF key
10 numeric keys
5 functional keys
Backlight

Magnetic Card Reader: Triple track bi-directional
Smart Card Reader: Landing type

Contactless Card Reader(optional) Supports:
VISA, MasterCard, American Express, Discover
MiFARE Mini
MiFARE Classic 1K / 4K
MiFARE Ultra-Light / Ultra-Light-C
MiFARE Plus 2K / 4K
ISO / IEC 14443 A&B
ISO / IEC 15693
DESFire
FeliCa

Connectivity:
RS232
USB – Device
BT 3.0 Class 2 (optional):
– SPP – Serial Port Profile
– iAP – iPod Accessory Protocol
Wi-Fi IEEE 802.11 (optional): Supporting b/g/n
GSM/GPRS (optional): Quad-band 850/900/1800/1900MHz,
GPRS Class 12, SIM Holder, SAM holder

OS Compatibility:
iOS, Android, Windows, Windows Phone, Windows 10 Mobile

LED Indication: 4 LEDs for contactless payment transactions
Audio Features: Electro-Magnetic Buzzer
Power Supply: DC 9 V, 1 A through power jack
Battery: Rechargeable Li-Ion Battery 7.4V/1300 mAh
Reliability:
500 000 chip card cycles
1 000 000 magnetic card swipes
1 000 000 button clicks

Certificates: CE, FCC, PCI PTS 4.x, EMV Level 1, EMV Level 2, EMV Level 1 Contactless, VISA payWave, MasterCard Contactless, American Express expressPay, Discover Zip, Apple® Mfi
Dimension: W x D x H76 x 172 x 49 mm
Weight: 320 g
Operational temperature range: -10 °C to +40 °C / 5 to 90% RH
Storage temperature range: -15 °C to +50 °C / 5 to 90% RH
