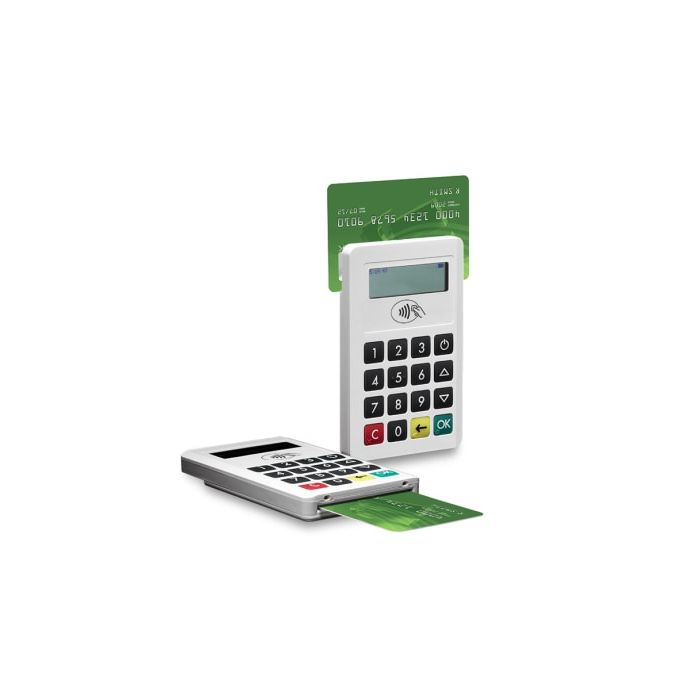

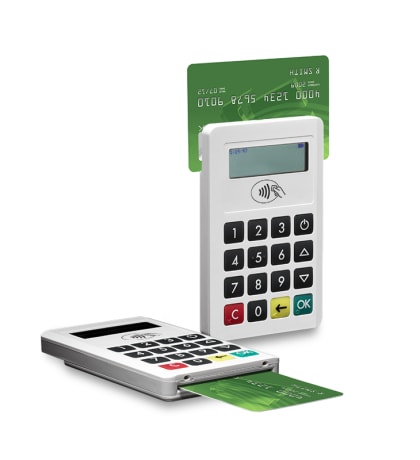

BluePad-50 Bluetooth Smart Card + Mag Stripe + NFC + PIN Pad



Functions:

• Power Supply Charge from USB or Power station
• Application Memory: 4 MB application accessible
   flash
• Display: LCD, monochrome, 128x32
• LED indication: 4 bicolor Contactless status LEDs

Buttons
• 10 numeric
• 5 functional
• ON / OFF

Magnetic Stripe Reader
• 3-track bidirectional reading
• Type: ISO 7816-1/2/3 compatible &RAW mode

Certifications
• EMV Level 1
• EMV Level 2
• PCI PTS 3.x SRED Compliant

Other
• Electro-Magnetic Buzzer
• Apple Authentication Coprocessor 2.0C R1

Technical Specifications:

Processor
• Innova Card USIP Professional, version IC400C
• 128 KB of SRAM
• 256 KB of Lockable Flash Memory
• 128 KB of ROM

Power Consumption
• Sleep mode: ~10 mA
• Charging current: ~235 mA

Communications
• RS-232
• USB OTG
• Bluetooth RFCOMM profile
• Apple Authentication Protocol
• NFC (option)

• Smart Card Reader: ISO 7816-1/2/3 compatible
• Environmental conditions: -15°C to + 50°C / 5 to 90%
  RH

Size/Weight/Power:

• W x L x H - 13 x 110 x 69 mm (0.5 x 4.3 x 2.7 inch)
• Weight - 120 gr.
• Power - Li-Ion battery 3.7V, 270 mAh
