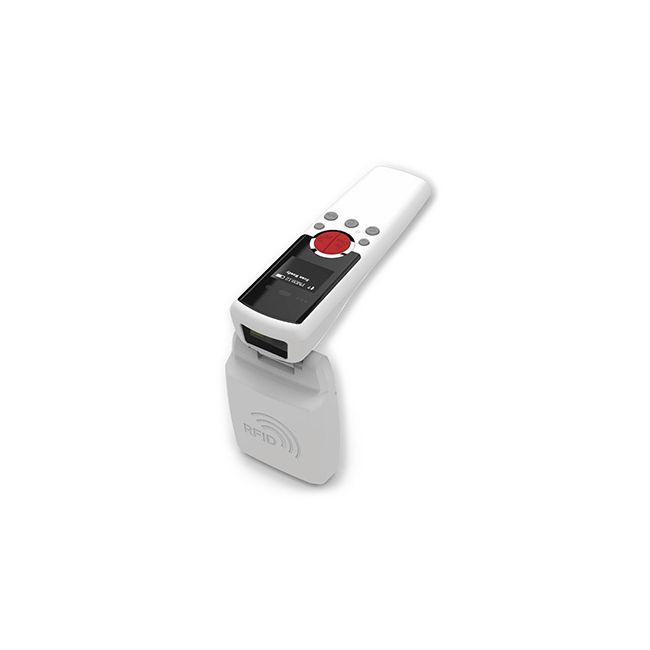

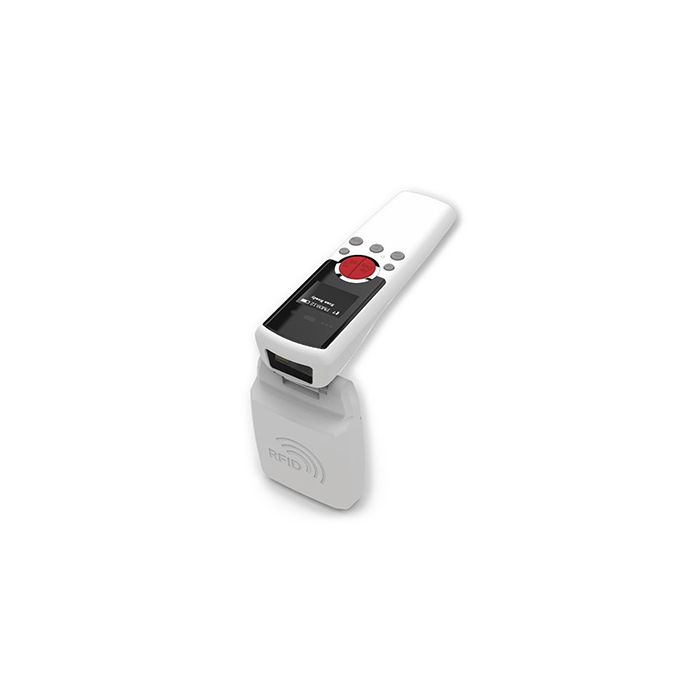

ATID XC-AT388 Bluetooth UHF RFID Reader
£1,134.00
£945.00
In stock
SKU
XC-AT388
The ATID XC-AT388 Bluetooth UHF RFID Reader is a powerful ARM7 Core device and excellent RFID reading capabilities. With RAIN RFID (UHF) and 1D or 2D barcode capabilities, this bluetooth RFID scanner is ideally suited to seamlessly connect to your Android Smartphone or Tablet. Bluetooth RFID readers' rugged IP65 protection makes them suitable for multiple applications and markets.
ATID XC-AT388 Bluetooth UHF RFID Reader
The ATID XC-AT388 Bluetooth RFID reader is a powerful ARM7 Core device and excellent RFID reading capabilities. With RAIN RFID (UHF) and 1D or 2D barcode capabilities, this bluetooth RFID scanner is ideally suited to seamlessly connect to your Android Smartphone or Tablet. Bluetooth RFID readers' rugged IP65 protection makes them suitable for multiple applications and markets.
Main Features of XC-AT388 Bluetooth UHF RFID Reader
-
RAIN RFID reader
-
1D and 2D Barcode scanner
-
WLAN b/g/n
-
Bluetooth Class 4.1 Classic (HID/SSP)
-
IP65
Specifications of XC-AT388 Bluetooth Uhf Rfid Reader
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| Internal Storage | 1MByte Flash Memory |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
50 x 164 x 30 (54)mm |
| Weight | 210g (without Battery) |
| Power | 3,200mAh Li-ion Battery (18650) |
| Display | 1.3 inch OLED Display |
| USB Interface | 1 USB Port / Micro USB |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~6m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Circular Patch Antenna / 1 dBi
Support Frequency (Optional) |
| Barcode | 2D Engine (Support to read 1D & 2D Barcode) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non-condensing) |
| Drop Specification | 1.5m |
| Dust & Water Proof | IP65 |
| Products Model | ATID XC-AT388 Bluetooth UHF RFID Reader |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Bluetooth |
| Manufacturer | ATID |
