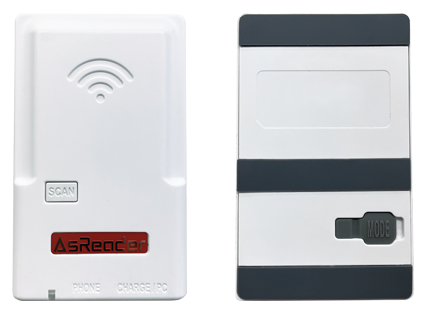

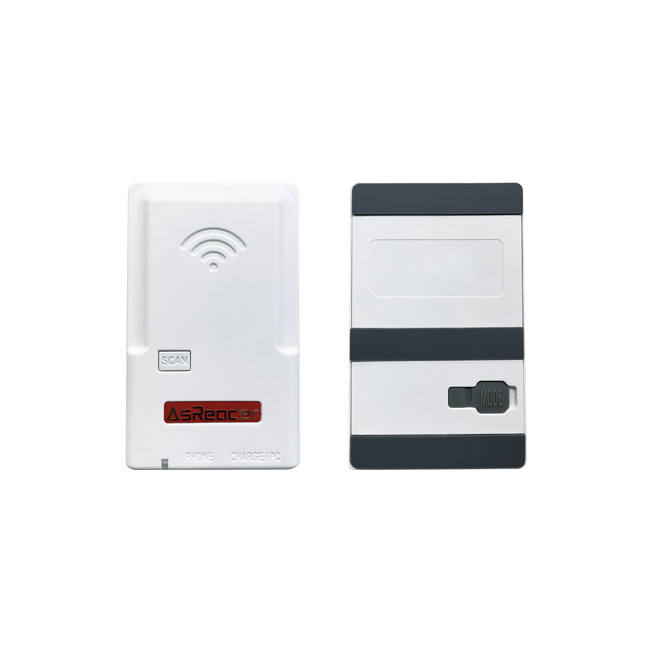

Asreader ASR-P35U-0x DESKTOP-Type UHF RFID Reader/Writer
ASR-P35U-0x DESKTOP-Type UHF RFID Reader/Writer for Linux & Windows
The ASR-P35U functions as an RFID reader/writer by connecting to a Windows PC or Android device via USB. It features a built-in antenna and can be used on a tabletop or wall-mounted. It operates in two modes: HID communication, where data from RFID tags is entered as keyboard input, and serial communication, which allows writing JAN codes to SGTINs and reading RFID tags with a specialized SDK.
ASR-P35U-0x DESKTOP-Type UHF RFID Reader/Writer for Linux & Windows
The ASR-P35U functions as a versatile RFID reader and writer, seamlessly connecting to your Windows PC or Android device via a USB cable. Its integrated antenna ensures reliable performance, whether positioned elegantly on a tabletop or securely mounted on a wall using the included fixture.
This device offers two distinct operating modes: HID communication and serial communication. In HID communication mode, you can effortlessly scan RFID tags by simply holding them over your PC or Android device, with the data being directly input at the cursor's position on the screen as if it were being typed on a keyboard.
Alternatively, the serial communication mode unlocks more advanced capabilities, allowing you to not only read RFID tags but also write JAN codes to SGTINs. This feature is particularly beneficial for applications utilizing a dedicated SDK, enhancing the versatility and functionality of the ASR-P35U in various operational contexts.
Specifications:
Model | ASR-P35U-01 (US, Canada, Japan) ASR-P35U-02 (EU, UK) |
|
---|---|---|
RFID | Spec | ISO/IEC 18000-63 (Former 18000-6C) / EPCglobal Class 1 Gen 2 |
Radio frequency | Japan: 920.6 ~ 923.4MHz North America: 917.1 ~ 926.9MHz EU, UK: 865.7 ~ 867.5MHz |
|
RF output power | Japan: Max 200mW (23dBm) North America: Max 500mW (27dBm) EU, UK: Max 500mW (27dBm) |
|
Reading distance | ~4.3 feet (~130cm) at 500mW (*1) | |
Polarization characteristics | Circular polarization (Internal antenna) | |
Functions | Read / Write / Lock / Kill | |
Power Source | USB Type-C port (POWER/PC) Input rating: 5V/0.5A |
|
Human interface | Trigger button (SCAN) Dip switch (MODE) Beep sound Blue LED Power on: Slow flashing USB connection: Light on Reading RF tags: Fast flashing |
|
Interface | Communication | USB Type-C port (PHONE) (*2) (USB 2.0) |
Power and Communication | USB Type-C port (POWER/PC) (*3) (Power input and USB 2.0) |
|
Appearance | Dimensions (W)x(D)x(H) | 3.5 × 2.2 × 0.5 inches (90 × 55 × 13mm) |
Resin material | PC+ABS | |
Resin color | White | |
Weight | Approx. 2.8oz (80g) | |
Environment | Operating | -10 ~ 45˚C, 20 ~ 85%RH |
Storage | -20 ~ 60˚C, 10 ~ 95%RH | |
Protection Ratings | IP54 compliant | |
Drop resistant | 4.9 feet (1.5m) Twice each on 6-sides and 4-corners (*4) |
|
Certifications | FCC/ISED CE/UKCA TELEC |
|
Supported OS | Android, Windows, iOS (*5) | |
Accessories | USB Type-C to Standard-A cable, Mounting frame |
*1: The value varies depending on the RF tag, settings, and environment.
*2: For Android device.
*3: For power input and Windows device connection.
*4: These tests were conducted on the device alone.
*5: Only supports the HID mode.
Products Model | ASR-P35U-0x DESKTOP-Type UHF RFID Reader/Writer |
---|---|
RFID reader | UHF RFID |
Device type | USB |
Manufacturer | Asreader |
