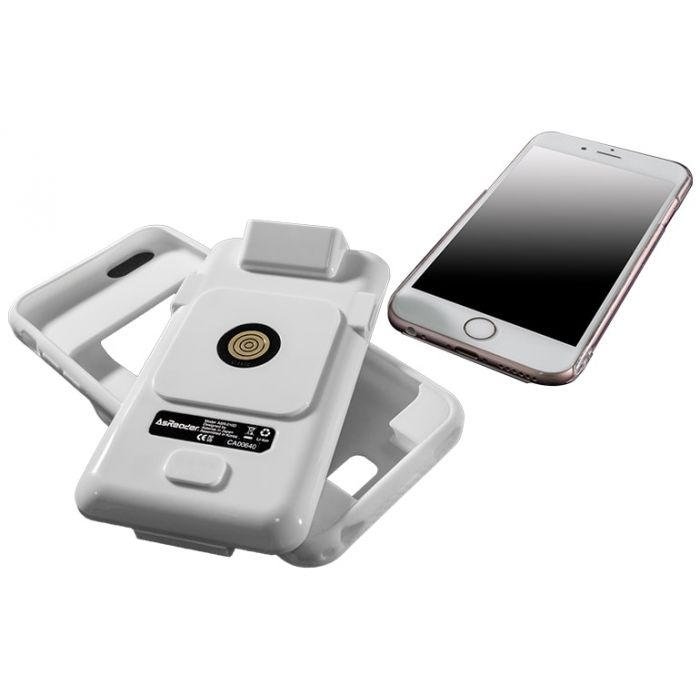

Asreader ASR-030D (US version) UHF RFID Reader/Writer for iOS

ASR-030D US sled, rfid ipad air, read rfid with iphone, iphone read rfid, ipad rfid, rfid jacket, iphone 7 rfid, ASR-030D / ASR-031D of AsReader series is the modular type RFID reader/writer for iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 5, iPhone 5s, iPhone SE, iPod touch 5th and 6th gen, and iPad Air2 and Pro9.7.

It is either around 860 or 920MHz UHF band RFID reader/writer and has FCC and CE certification for each model.

ASR-030D US

• Model Name: ASR-030D US
• RFID: Spec ISO 18000-63 (Formerly known as: ISO 18000-6 Type C) / EPC Class1 Gen2
• Bandwidth: ASR-030D: 902 - 928MHz
• *Please contact us for your local standard. It can be modified for other countries with firmware updates.

• Output power: 316mW（25dBm）
• Reading distance: About 2m / 6 feet（*2）
• Polarization characteristics: Circularly Polarized Antenna
• Function: Read / Write / Lock / Kill
• Battery Capacity: Built-in rechargeable lithium-ion battery 700mAh
• Continuous operation time: 7 hours or more. Approximately 40,000 scans. (*3)
• Power Source: Magconn Cable (*4)
• Charging time: About 2 hours (Built-in battery）（*5）
• Key input: 2 Trigger keys
• Communication Interface: MFi on Lightning (*6)
• Appearance: Dimensions (W)x(D)x(H)     63.7 × 9.7 × 117.2mm
• Weight(with Battery): About 75g
• Material: PC
• Casing colour: White
• LED: Non-blinking Blue LED: Connected with device (*7).
• Blinking Blue LED: Reading RFID tag.
• Non-blinking Red LED: Battery is charging.
• Faint Red LED: Battery is fully charged
• Environment: Operating environment    -10～45℃, 20～85 % RH（Charge at 0 ℃ or more)
• Storage environment: -20～60℃, 10～95 % RH
• IP Rating: IP54 compliance
• Anti-drop: (Six-sided * 4 edge, once each) 1.5m/ 4.5 feet (*8)
• Certificate: TELEC / Apple Mfi / FCC / CE
• Requirements: Devices iPhone 7/7 Plus/6/6 Plus/6s/6s Plus/5/5S/SE, iPod touch 5/6 gen, iPad mini 1/2/3/4, iPad Air 1/2, & iPad Air Pro 9.7 (*9)
• OS: iOS8.0 or later (except iOS9.2.x)

Bundled items   Magconn cable / Earphone extension cable /manual

• *1 The radio frequency bandwidth can be modified between these levels using software.
• *2 It may depend on the type of IC tags and operating circumstances.
• *3 iPhone's battery will last about 4.5hrs/25,000 times continuous reading on iPhone's default brightness setting. At which point AsReader's battery will still have about 50% charge.
• *4 Standard iPhone 1A charger is strongly recommended to be used when using Magconn cable.
• *5 iPhone and AsReader batteries will charge simultaneously. iPhone and AsReader batteries will be recharged in 3.5 hrs and 2 hrs respectively in simultaneous recharging mode.
• *6 SDK is available for free download.　
• *7 Blue LED will turn on after iPhone/iPod is connected. LED will turn off after the reading the first tag.
• *8 iPhone screen could be broken, depending on the drop angle.
• *9 It depends on the case, Please contact us for case availabilities.
