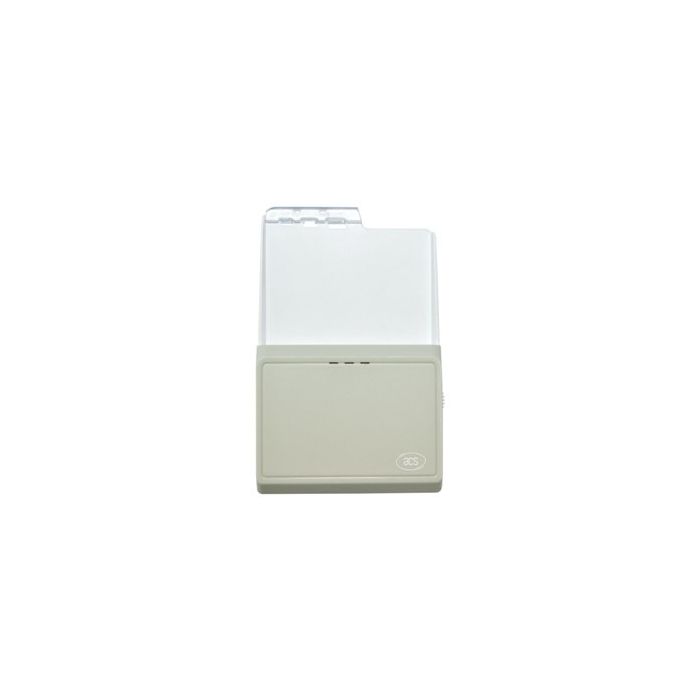

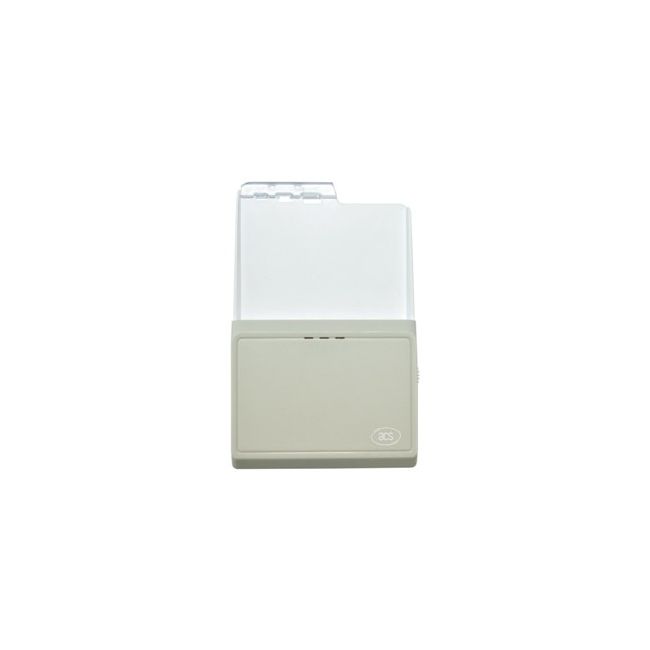

ACR3901U-S1 Bluetooth Smart Card Reader
ACR3901U-S1 Bluetooth® Contact Card Reader combines the latest smart card reader technology with Bluetooth® Smart connectivity. This compact and wireless smart card reader brings together sophisticated technology and fresh design to meet requirements of various smart card-based applications. It is intended for use with most Bluetooth-enabled devices in the market, such as smart phones and tablets.
ACR3901U-S1 supports ISO 7816 Class A, B, and C smart cards (5 V, 3 V, and 1.8 V) and most memory cards in the market, including microprocessor cards with T=0 and T=1 protocol. ACR3901U-S1 has both USB Full Speed and Bluetooth 4.0 interface for smart cards. It has a read/write speed of up to 600 Kbps. With its compact design and rechargeable Lithium-ion battery, ACR3901U-S1 is extremely portable and convenient for use anytime, anywhere.
ACR3901U-S1 offers in-field firmware upgrade to help the user cope with the fast-changing technology utilized by different applications. With this feature, stakeholders will be able to save valuable cost and time and provide utmost convenience to users.
ACR3901U-S1 uses Bluetooth® Smart technology that allows easy integration without employing any physical connection to any terminal. It supports devices running on Android™ 4.3 and above, iOS 5.0 and above, Windows®, and Mac OS®.
ACR3901U-S1 is PC/SC and CCID-compliant, making it easy to install and use in any computer-based environment. Its drivers are compatible with the Windows® operating system, Linux®, and Mac OS®.
With its numerous features, the ACR3901U-S1 is the perfect smart card reader for your smart card solution.
Features:
- Bluetooth® Smart Interface
- USB-Powered (PC-linked mode):
- USB 2.0 Full Speed Interface
- CCID Compliance
- Firmware Upgradeable
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- Battery-Powered:
- Incorporates a Lithium-ion battery (rechargeable through PC-linked mode)
- Smart Card Reader:
- Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
- Supports microprocessor cards with T=0 or T=1 protocol
- Supports memory cards
- Supports PPS (Protocol and Parameters Selection)
- Features Short-Circuit Protection
Applications:
- e-Government
- Mobile Banking & Payment
- e-Healthcare
- Access Control
- Network Security
- Public Key Infrastructure
- e-Purse & Loyalty
Specifications:
| Dimensions |
94.0mm (L) x 60.0mm (W) x 12.0mm (H) |
| Interface |
- Bluetooth® Smart
- USB Full Speed
|
| Power |
Lithium-ion battery (rechargeable through USB) |
| Supply Current |
Max. 50 mA |
| Operating Temperature |
0-50 °C |
| Smart Card Interface Support |
- ISO7816 Class A, B, and C cards
- Microprocessor cards with T=0 and T=1 protocol
- Memory cards
|
| Compliance / Certifications |
- EN60950/IEC 60950, ISO 7816, CE, FCC, VCCI, PC/SC, CCID, EMV™ 2000 Level 1, Bluetooth® Smart, USB Full Speed, RoHS 2, REACH, Microsoft WHQL
|
| Operating System Support |
- Windows
- Linux
- Mac OS
- Android™ 4.3 and above
- iOS 5.0 and above
|
