ACR31 audio jack magnetic stripe reader
£32.40
£27.00
In stock
SKU
ACR31

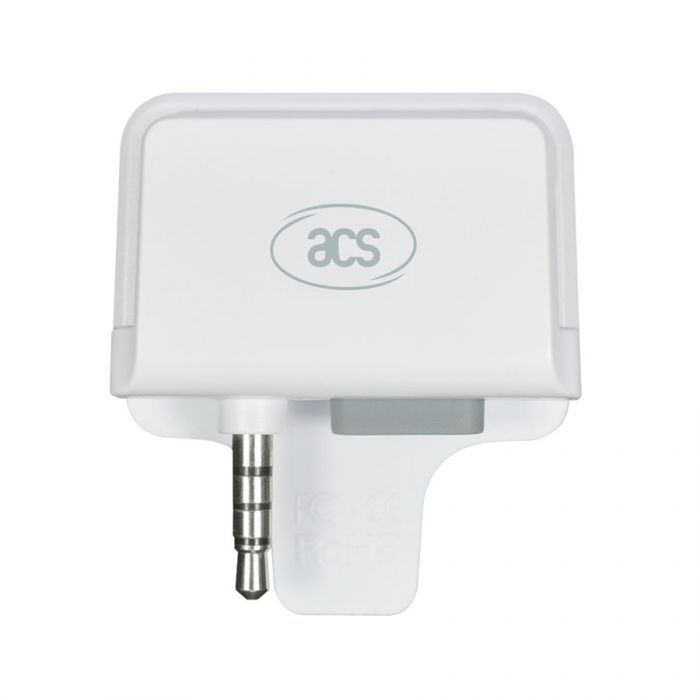

ACS ACR31 audio jack magnetic stripe reader
ACR31 Swipe Card Reader combines card reader functionality and mobility, enabling you to access secure applications anytime, anywhere. Compact and stylish, this card reader supports demanding applications that use magnetic stripe cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs.
ACS ACR31 audio jack magnetic stripe reader
ACR31 Swipe Card Reader combines card reader functionality and mobility, enabling you to access secure applications anytime, anywhere. Compact and stylish, this card reader supports demanding applications that use magnetic stripe cards. It provides the perfect balance between reliable functionality and design aesthetics to meet your security needs.
ACR31 Swipe is a reliable Mobile Card Reader that uses AES-128 encryption algorithm and DUKPT Key Management System for secure transactions, which makes it ideal for a broad range of solutions, such as e-Banking and e-Payment.
The ultra-compact ACR31 Swipe is specifically designed to be brought and used anytime, anywhere. A CR2016 battery (to stabilize the power supply) and a standard 3.5mm audio jack interface further allow the ACR31 Swipe to be integrated seamlessly into any smartphone or tablet in the market.
Built with a modern design, ACR31 Swipe is a portable and lightweight swipe card reader that is perfect for transacting securely while on the go.
Should you wish to try out the demo apps for ACR31, please download the app from Google Play and App Store.
Features:
- 3.5mm Audio Jack Interface
- Powered by a CR2016 battery
- Reads up to two tracks of card data (Track 1 / Track 2)
- Capable of bidirectional reading
- Supports AES128 encryption algorithm
- Supports DUKPT Key Management System
- Magnetic Card Reader:
- Supports ISO 7810 / 7811 magnetic cards
- Supports Hi-Coercivity and Low-Coercivity magnetic cards
- Supports JIS1 and JIS2
Applications:
- Mobile Banking & Payment
- e-Healthcare
- e-Purse & Loyalty
Specifications:
| Dimensions | 39.7mm (L) x 46.0mm (W) x 18.0mm (H) |
| Interface | 3.5mm 4-pole audio jack |
| Power | CR2016 battery |
| Supply Voltage | 2.3 to 3 V DC |
| Supply Current | 5 mA |
| Operating Temperature | 0-50°C |
| Card Swipe Speed | Max. 10 IPS (inches per second) |
| Card Swipe Cycles | Min. 500,000 |
| Magnetic Stripe Card Support |
|
| Compliance / Certifications |
|
| Operating System Support |
|
| Products Model | ACR31 audio jack magnetic stripe reader |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | ACS |
